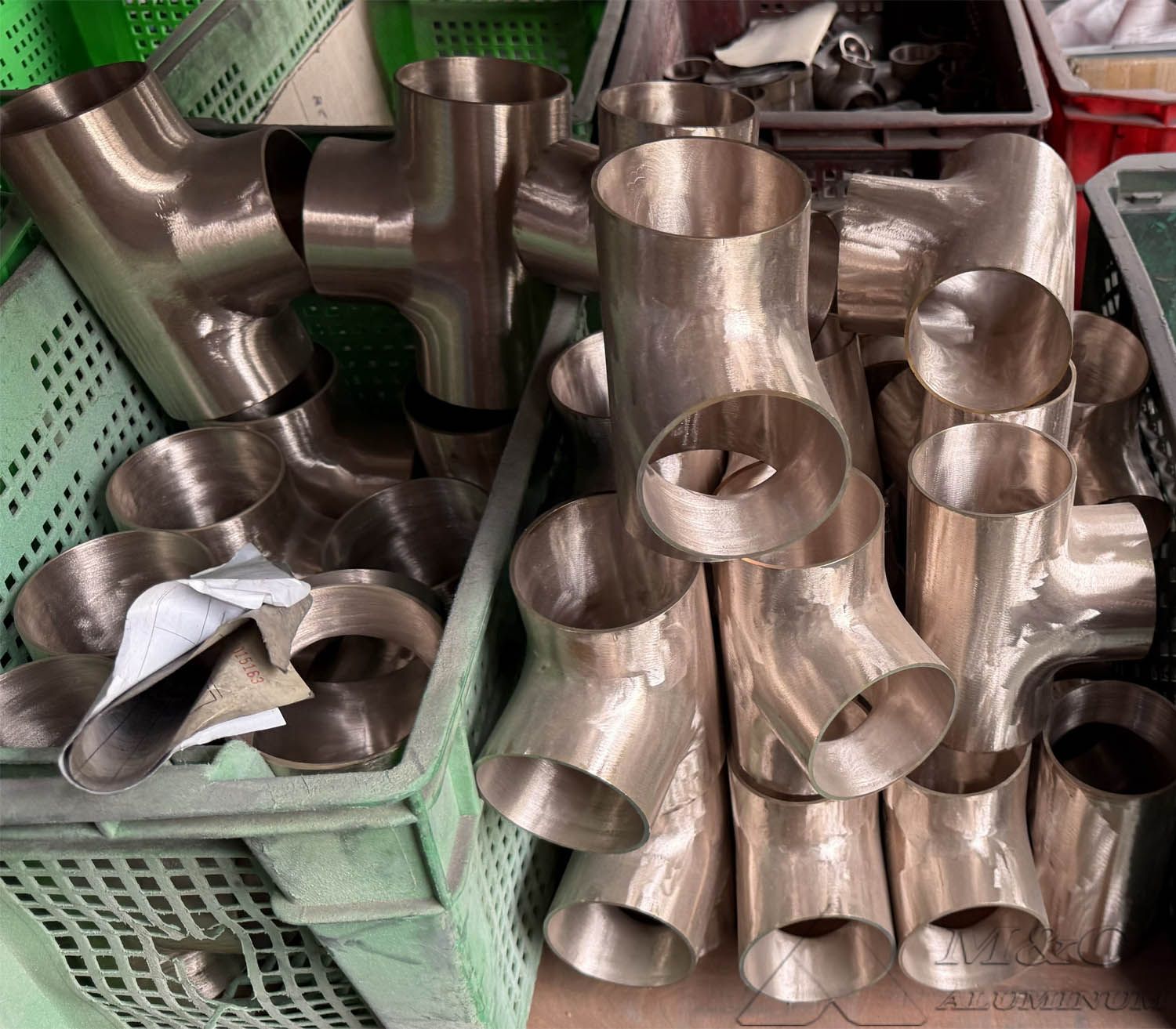

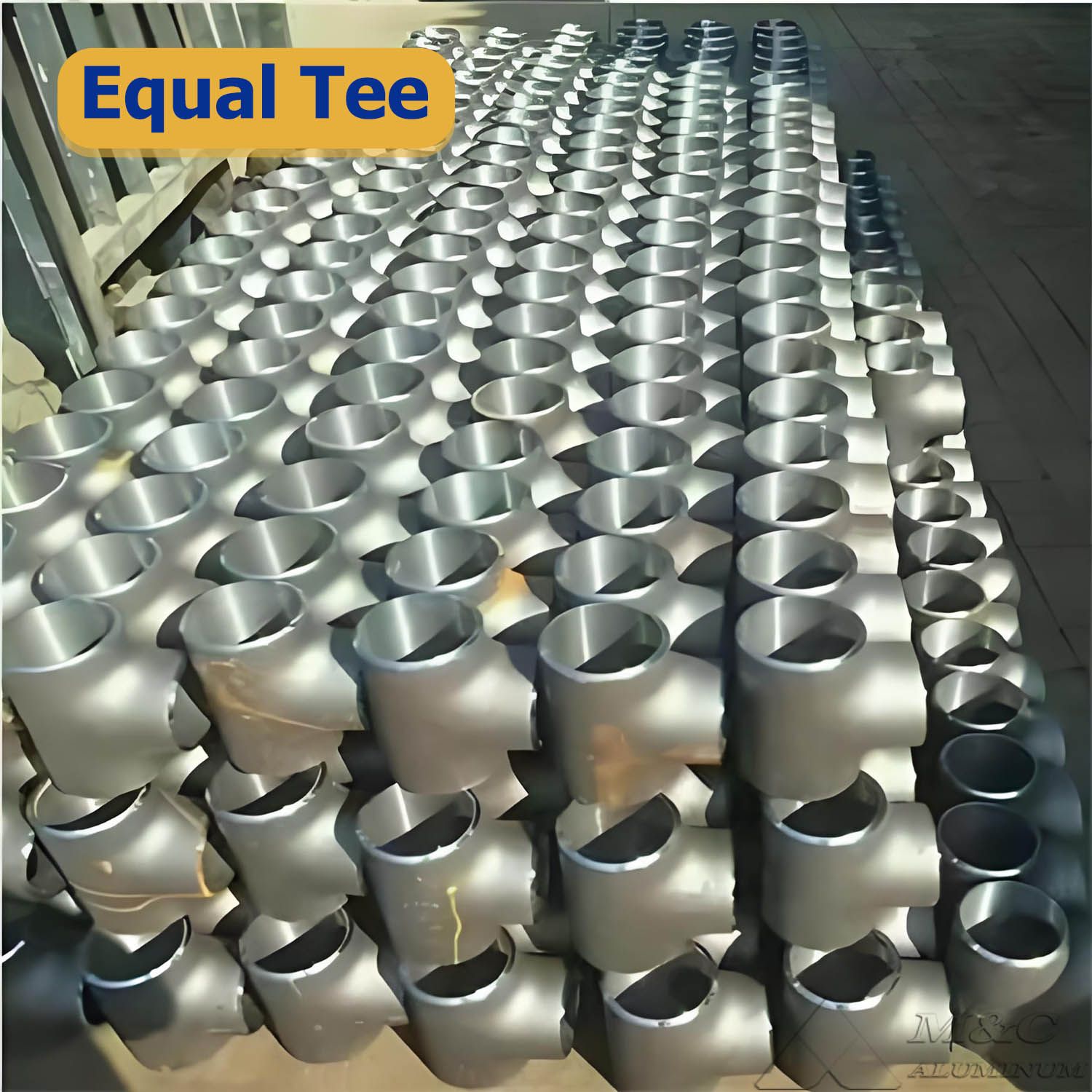

A Copper Nickel Equal Tee is an important pipe fitting used for branch connections in piping systems. Its three outlets have the same diameter, allowing uniform diversion or convergence of media between the main pipeline and the branch line. Copper nickel equal tees are commonly manufactured from 90/10 copper nickel, offering excellent seawater corrosion resistance, good mechanical strength, and outstanding biofouling resistance. They are widely used in marine engineering, shipbuilding, seawater desalination, power plant cooling systems, offshore oil platforms, and other industries.

In an entire piping system, a tee is often a location where fluid direction changes and pressure fluctuations are concentrated. A copper nickel equal tee not only serves as a connecting component but also directly affects the operational stability, sealing safety, and service life of the piping system. Therefore, it is an essential fitting in seawater and corrosive media piping systems.

MC manufactures pipe fittings in accordance with global standards such as ASME B16.9 in both imperial and metric sizes, DIN 86088, and EEMUA 146/234.

Product Structural Features

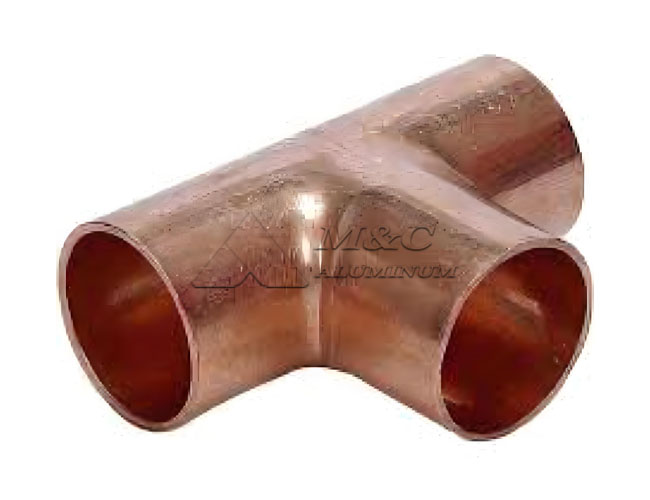

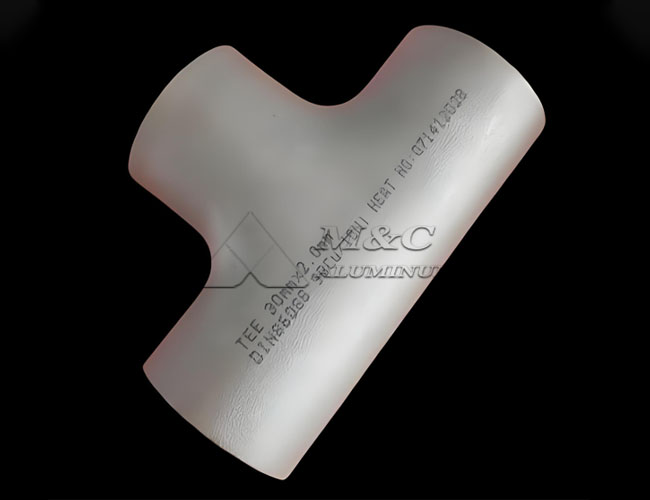

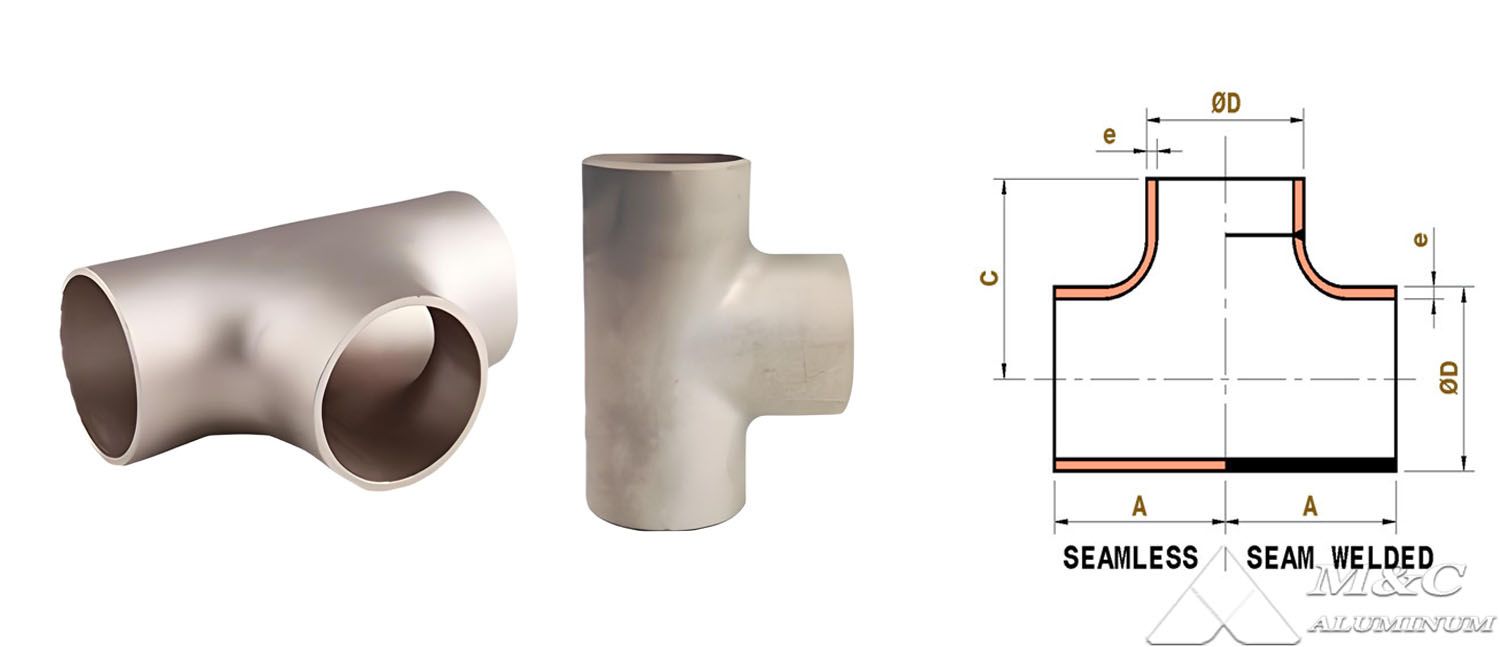

A copper nickel equal tee consists of a main pipe and a vertical branch, with all three outlets of the same size. This design helps maintain good flow conditions during fluid diversion or convergence.

Its structure offers the following features:

• Three ports of the same size for convenient connection

• Smooth inner wall to reduce fluid resistance

• Natural flow transition to minimize turbulence

• Uniform wall thickness for high pressure-bearing capacity

• Excellent weldability for efficient installation

• Compatible with copper nickel seamless pipes, welded flanges, and other fittings

A well-designed flow passage can effectively reduce pressure loss and improve the operating efficiency of the entire piping system.

Product Specifications

Core Performance Advantages of Copper Nickel Equal Tee

1.Seawater Corrosion Resistance:

Copper nickel alloy can naturally form a dense and stable protective film in seawater environments. This film effectively resists chloride ion corrosion and significantly inhibits pitting corrosion, crevice corrosion, and marine atmospheric corrosion, making it an ideal choice for seawater piping systems.

2.Strong Erosion Resistance:

Under conditions involving diversion, convergence, and sudden changes in flow velocity, the material surface remains stable and can effectively resist localized damage caused by high-speed media impact. It is suitable for high-flow-rate piping environments.

3.Biofouling Resistance:

Copper ions have natural antibacterial and anti-fouling properties, which can reduce the adhesion and growth of shellfish, algae, and microorganisms on the pipe wall. This helps keep the pipeline unobstructed and reduces cleaning and maintenance frequency.

4.Excellent Weldability:

Copper nickel equal tees can be connected by butt welding, socket welding, and other methods. With suitable welding materials and proper welding procedures, the weld joint can achieve high strength, reliable sealing, and stable corrosion resistance.

5.Long Service Life:

In marine and saline media environments, the combined corrosion resistance and erosion resistance of copper nickel equal tees provide a much longer service life than ordinary steel fittings, reducing replacement frequency.

6.High Life-Cycle Cost Efficiency:

Although the initial purchase cost may be slightly higher, copper nickel equal tees offer low failure rates, reduced maintenance, and long service life. As a result, long-term operating costs are significantly reduced, especially for projects with strict safety and reliability requirements.

Connection Methods of Equal Tee

To suit piping systems with different wall thicknesses and installation environments, copper nickel equal tees are available with various flexible connection methods:

Butt Weld:

Suitable for high-pressure, high-temperature, and large-diameter piping systems. A full-penetration bevel weld provides a connection with strength comparable to the pipe itself. It is the mainstream choice for shipbuilding and offshore engineering.

Socket Weld:

Suitable for small-diameter pipes, typically below 2 inches, and high-pressure piping systems. The pipe is inserted into the socket of the fitting and connected by a fillet weld. This method offers easy alignment and a longer leakage path.

Threaded Connection:

Convenient for quick on-site installation and disassembly. It is suitable for low-pressure, small-diameter instrument air, potable water, or temporary pipelines. Common thread standards include NPT, the American standard tapered pipe thread.

Application Fields of Copper Nickel Equal Tee

Shipbuilding and Repair:

Used in compact seawater cooling systems, ballast water systems, fire-fighting networks, and domestic sewage pipelines of modern ocean-going cargo ships, naval vessels, and LNG carriers.

Offshore Engineering Platforms:

Applied in process pipelines and seawater desalination systems of offshore drilling platforms and FPSO units.

Coastal Industries:

Used in ultra-large-flow seawater circulating cooling systems of coastal nuclear power plants and thermal power plants.

Chemical Industry:

Suitable for high-end piping systems involving organic acids, salt water solutions, non-oxidizing acids, and various chemical media.

Difference Between Copper Nickel Equal Tee and Reducing Tee
