In marine and offshore engineering, equipment and piping systems are continuously exposed to highly demanding operating environments, including corrosive seawater, strong wave impact, high working pressures, and marine biofouling. Ordinary carbon steel flanges may show obvious rusting after only a few months in seawater environments. Although stainless steel flanges offer improved corrosion resistance, they may still face risks of pitting corrosion and crevice corrosion in flowing seawater.

By contrast, C70600 copper nickel flanges form a dense and protective oxide film naturally in seawater environments, making them a preferred material for piping connection systems in marine and offshore applications.

Since the 1950s, thousands of tons of C70600 copper nickel alloy have been installed in various marine engineering structures, mainly for seawater handling and heat exchanger piping in shipbuilding, offshore engineering, power generation, and desalination industries. The 90/10 copper nickel alloy is one of the few engineering alloys that can provide both high seawater corrosion resistance and resistance to marine biofouling. It has been widely used in seawater pipelines, condensers, and heat exchanger systems.

What Is C70600 Copper Nickel Alloy?

C70600, also known as 90/10 copper nickel alloy, contains approximately 10% nickel, along with small additions of iron and manganese to optimize its overall performance.

Its most notable feature is its ability to naturally form a dense and stable protective oxide film in seawater. This film helps prevent chloride ions from penetrating the base metal and improves resistance to seawater corrosion, erosion-corrosion, pitting, and crevice corrosion.

Compared with stainless steel, C70600 copper nickel alloy provides stronger resistance to marine organism attachment. Compared with carbon steel, it does not require frequent heavy-duty anti-corrosion coating maintenance. It performs reliably in both stagnant and flowing seawater environments, making it a classic material for seawater piping and offshore process pipelines.

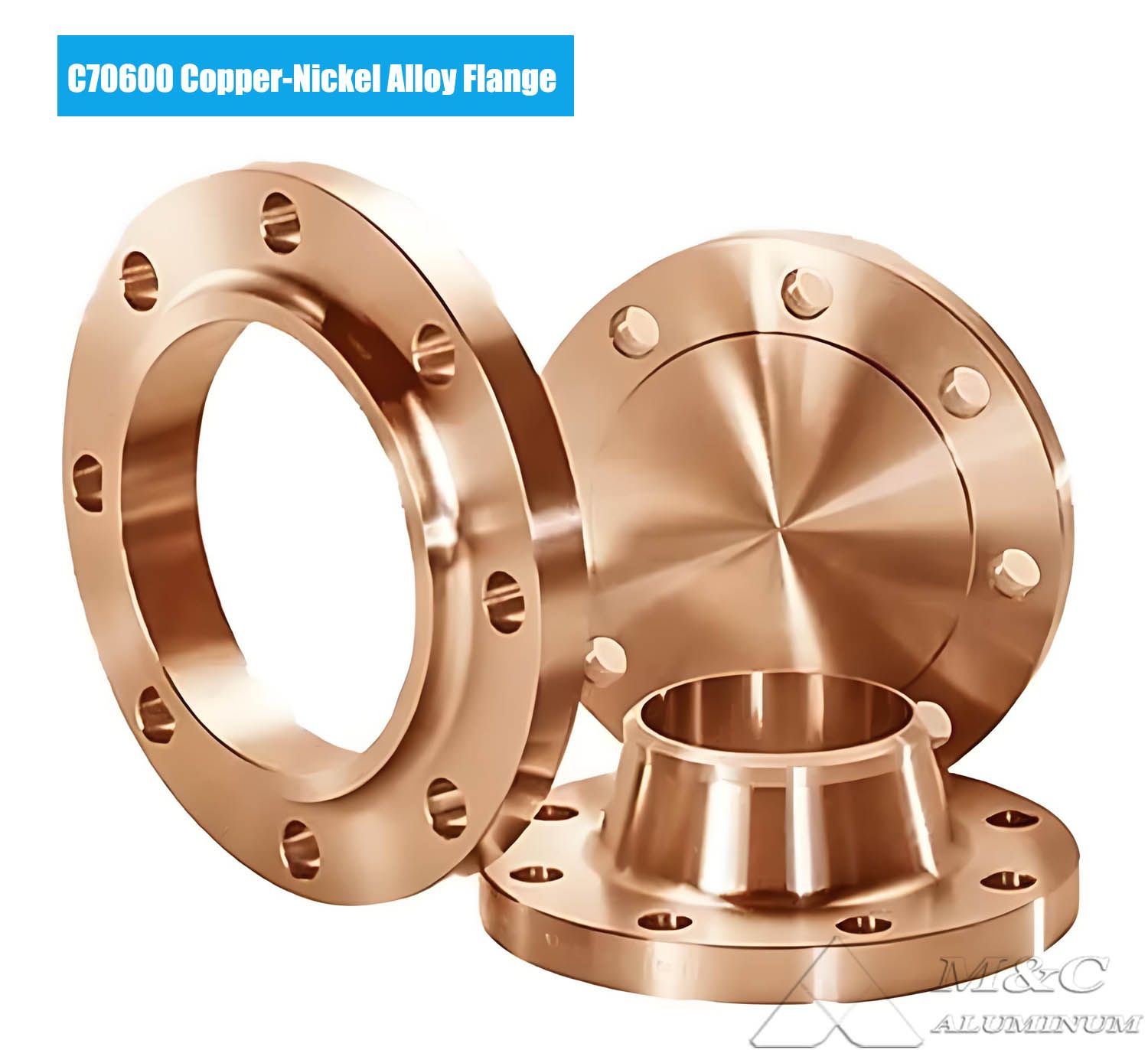

C70600 flanges are generally manufactured by forging, resulting in a dense microstructure and stable mechanical properties. They are suitable for marine applications involving high pressure and cyclic loading.

Chemical Composition (%)

Why Choose C70600 Copper Nickel Flanges for Marine Engineering?

C70600 copper nickel flanges are suitable for ships, offshore structures, seawater cooling systems, and heat exchange systems. Their main advantages include:

1.Excellent Seawater Corrosion Resistance

C70600 offers outstanding corrosion resistance in seawater environments, making it suitable for long-term seawater transportation and piping connections.

2.Strong Erosion-Corrosion Resistance

The alloy can withstand the erosive effect of flowing seawater, helping reduce corrosion damage at flange connection areas exposed to high-velocity seawater flow.

3.Good Weldability and Machinability

C70600 can be machined according to pipe diameter, pressure class, and installation requirements. It can also be welded using welding procedures compatible with copper nickel alloys.

4.Stable Mechanical Performance

It maintains reliable connections under vibration, temperature variation, and pressure fluctuations, meeting the demanding requirements of marine and offshore piping systems.

5.Resistance to Marine Biofouling

The alloy helps inhibit the attachment of marine organisms, reducing the operational impact of biofouling on piping systems.

Available Specifications for C70600 Copper Nickel Flanges

C70600 copper nickel flanges can be manufactured according to drawings, international standards, and project-specific technical requirements.

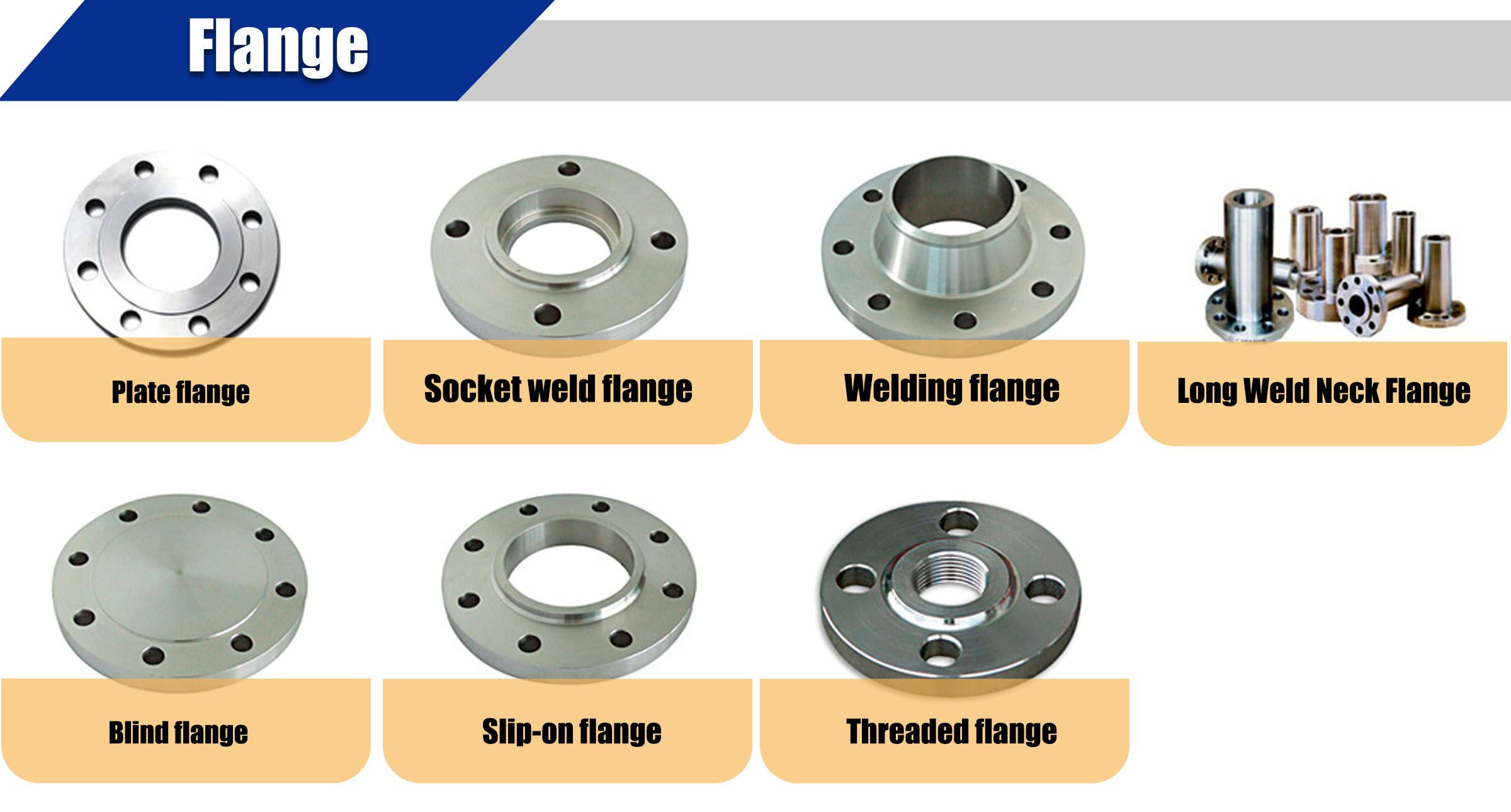

Types and Specifications of C70600 Copper Nickel Flanges

1. Overview of Flange Types

C70600 copper nickel flanges are available in nearly all mainstream flange types to meet different service conditions and connection requirements.

Weld Neck Flanges (WN): Suitable for high-pressure, high-temperature, and cyclic-loading applications. They are often preferred for seawater piping systems in offshore engineering.

Slip-On Flanges (SO): Suitable for medium- and low-pressure seawater piping. They are easy to install and widely used in shipbuilding and seawater pipeline systems.

Socket Weld Flanges (SW): Suitable for small-diameter piping, typically DN50 and below. Commonly used in ship ballast water and firewater systems.

Threaded Flanges: Suitable for applications where welding is not appropriate. Available in pressure ratings from Class 150 to Class 600.

Blind Flanges (BL): Used to close or isolate piping systems. Available in Class 150 to Class 600 ratings.

Lap Joint Flanges (LJ): Facilitate pipe alignment and adjustment and are suitable for piping systems that require frequent dismantling.

Special flange types, including reducing flanges, orifice flanges, spectacle blinds, and other customized designs, can also be manufactured according to project requirements.

2. Size and Pressure Rating Coverage

C70600 flanges are available in a wide range of nominal sizes, from DN15 (1/2") to DN600 (24"). For special requirements, sizes can be extended to DN1200 or even larger.

In terms of pressure rating, the ASME system typically covers Class 150, 300, 600, and 900, while the European system can cover PN6 to PN100. These ratings can meet the needs of applications ranging from low-pressure seawater pipelines to high-pressure process piping.

3. Applicable Standards

C70600 copper nickel flanges can be manufactured in accordance with multiple international standard systems, including:

ASME / ANSI Standards: ASME B16.5 for 1/2"–24" sizes, ASME B16.47 Series A and B for large-diameter flanges, ASTM B151 material specifications, and ANSI/ASME B16.5 dimensional requirements.

European Standards: DIN 86019, EN 1092-1, BS 4504, and related standards.

Chinese Standards: GB/T 9119, GB/T 9115, HG/T 20592, and related standards.

Other Standards: MSS SP-44, API 605, AWWA, and other special standards.

4. Classification Society Certifications

For shipbuilding and offshore engineering projects, the following certifications may also be required:

ABS — American Bureau of Shipping

DNV — Det Norske Veritas

LR — Lloyd’s Register

BV — Bureau Veritas

CCS — China Classification Society

KR — Korean Register

Applications of C70600 Flanges in Shipbuilding

Ships contain extensive seawater piping systems, including seawater cooling systems, firefighting systems, ballast water systems, and seawater desalination systems.

In seawater cooling systems, seawater is commonly used to cool engines, heat exchangers, and other equipment. Because seawater is highly corrosive, pipes and their connecting components must provide reliable seawater corrosion resistance.

C70600 copper nickel flanges can be used to connect C70600 copper nickel pipes, valves, pumps, and heat exchange equipment, creating a complete seawater piping connection system.

For shipbuilders and ship repair companies, flange dimensional accuracy, sealing face quality, and bolt-hole positioning accuracy are also critical considerations.

Applications of C70600 Flanges in Offshore Engineering

Offshore oil platforms, offshore wind power facilities, and other marine engineering equipment are exposed to high-salinity, high-humidity, and salt-spray environments for extended periods.

Seawater cooling systems, firefighting systems, water injection systems, and auxiliary water systems may all involve seawater piping.

Compared with conventional steel flanges, C70600 copper nickel flanges offer clear material advantages in terms of corrosion resistance in seawater environments. When designing offshore piping systems, suitable C70600 flanges can be selected based on the fluid medium, operating pressure, flow velocity, temperature, and other project conditions.

Key Points for Flange Installation and Maintenance

1.Welding Quality Control

C70600 copper nickel alloy has good weldability. TIG or MIG welding processes are generally recommended.

During welding, the root weld bead reinforcement should be carefully controlled to avoid excessive weld penetration, which may increase local turbulence. Depending on pipe diameter, the maximum allowable weld bead protrusion may range from 1.5 mm for DN below 40 to 3.0 mm for DN above 300. Applicable standards and project requirements should always be followed.

2.Flow Path Design Optimization

Sharp 90-degree elbows should be avoided where possible. The bend radius should be at least 1.5D, while 3D or 5D bends are recommended when conditions permit.

Straight pipe sections of approximately 3D upstream and 5D downstream should be retained near pumps and valves to stabilize fluid flow. For areas with abrupt flow-path changes and flow velocities above 3 m/s, the piping configuration should be optimized and flow velocity reduced to prevent erosion-corrosion caused by flow turbulence.

3.Minimum Flow Velocity Control

In seawater containing sediment, excessively low flow velocity may lead to sediment accumulation and under-deposit corrosion. Different industry organizations recommend a minimum flow velocity of approximately 0.5–1 m/s. Cleaner water generally requires a lower minimum flow velocity.

4.Regular Inspection and Maintenance

During scheduled docking or maintenance periods, visual inspection and non-destructive testing should be carried out on flange connection areas. Particular attention should be given to possible erosion signs in weld zones.

The protective surface film of C70600 alloy has self-repairing characteristics. Minor or occasional surface corrosion may repassivate naturally after flow velocity is reduced or operating conditions are stabilized.

Guide to Selecting the Right C70600 Copper Nickel Flanges

a. Specifications and Standards

When selecting C70600 copper nickel flanges, the following factors should be considered:

Size: Determine the flange diameter and thickness according to the connected pipe and equipment.

Pressure Rating: Select a suitable pressure class to ensure reliable performance under expected operating conditions.

Facing Type: Choose the appropriate sealing face, such as flat face, raised face, or ring-type joint face, to ensure effective sealing performance.

b. Material Certification

Ensure that C70600 copper nickel flanges comply with relevant industry standards and certification requirements, such as ASTM B124, ASTM B111, ASME BPVC, or project-specific specifications. These documents help verify material quality and performance.

c. Supplier Selection

Choose a reliable supplier to ensure consistent quality for C70600 copper nickel flanges. A qualified supplier should be able to provide detailed product specifications, material test reports, inspection records, and technical support.
