The five-bar aluminum tread plate is one of the most widely used classic patterned aluminum plates. Thanks to its excellent anti-slip performance, it is highly recognized in various industrial and commercial applications. Because the pattern resembles willow leaves, it is also commonly known as a willow-leaf pattern aluminum plate.

Among these materials, 5052 alloy tread plate not only provides superior slip resistance but also offers excellent corrosion resistance and anti-rust properties. It is particularly suitable for humid and corrosion-prone environments such as cold storage floors, marine decks, workshop walkways, transportation platforms, and ship decks.

Marine Aluminum Plate Material: 5052 Aluminum Alloy

5052 aluminum alloy belongs to the Al-Mg (5000 series) aluminum alloy family and is a typical rust-proof aluminum alloy. Due to the presence of magnesium as the main alloying element, it exhibits outstanding comprehensive performance in marine environments.

The most commonly used tempers for 5052 marine aluminum plates are H32, H116, and H321. These tempers undergo special stabilization treatments that help resist exfoliation corrosion and stress corrosion cracking, making them suitable for demanding marine applications.

Advantages of 5052 Marine Aluminum Alloy

1.Excellent Corrosion Resistance

In seawater environments, the natural oxide film on the alloy surface effectively prevents corrosion, outperforming traditional carbon steel materials.

2.High Strength and Good Plasticity

With a tensile strength of 230–300 MPa and elongation exceeding 12%, 5052 aluminum performs exceptionally well under deck load conditions.

3.Lightweight Characteristics

With a density of only 2.7 g/cm³, it is about one-third lighter than steel, significantly reducing vessel weight and improving fuel efficiency.

4.Excellent Weldability

5052 aluminum plates have excellent welding performance and can be joined using MIG or TIG welding processes, making them highly suitable for marine structural fabrication.

Comparative Advantages Over Other Aluminum Alloys

Compared with commonly used alloys such as 6061 and 6005, 5052 offers:

Better corrosion resistance, especially in salt spray environments

Higher formability, making it more suitable for complex deck structures

Better weldability, with improved performance retention after welding

Structural Advantages of the Five-Bar Pattern

The surface of the 5052 aluminum plate is rolled to form a five-bar anti-slip pattern (Five Bar Pattern). This design is not only visually appealing but also provides several functional benefits.

1. Excellent Anti-Slip Performance

The raised five-bar pattern increases surface friction. With an angle of 60–80° between each pattern, it effectively prevents slipping even when the deck is wet or exposed to seawater.

2. Improved Structural Rigidity

The patterned structure enhances the overall rigidity of the plate, allowing it to carry higher loads at the same thickness.

3. Wear and Pressure Resistance

Ship decks frequently bear foot traffic, equipment movement, and cargo loads. The five-bar pattern distributes pressure effectively and improves wear resistance.

4. Good Drainage Performance

The patterned grooves help drain water quickly, reducing slip hazards and corrosion risks.

Specifications of Marine Aluminum Tread Plate

Applications of 5052 Five-Bar Tread Plate in Marine Industry

In shipbuilding and marine engineering, 5052 five-bar aluminum tread plates are widely used in various deck and structural areas, including:

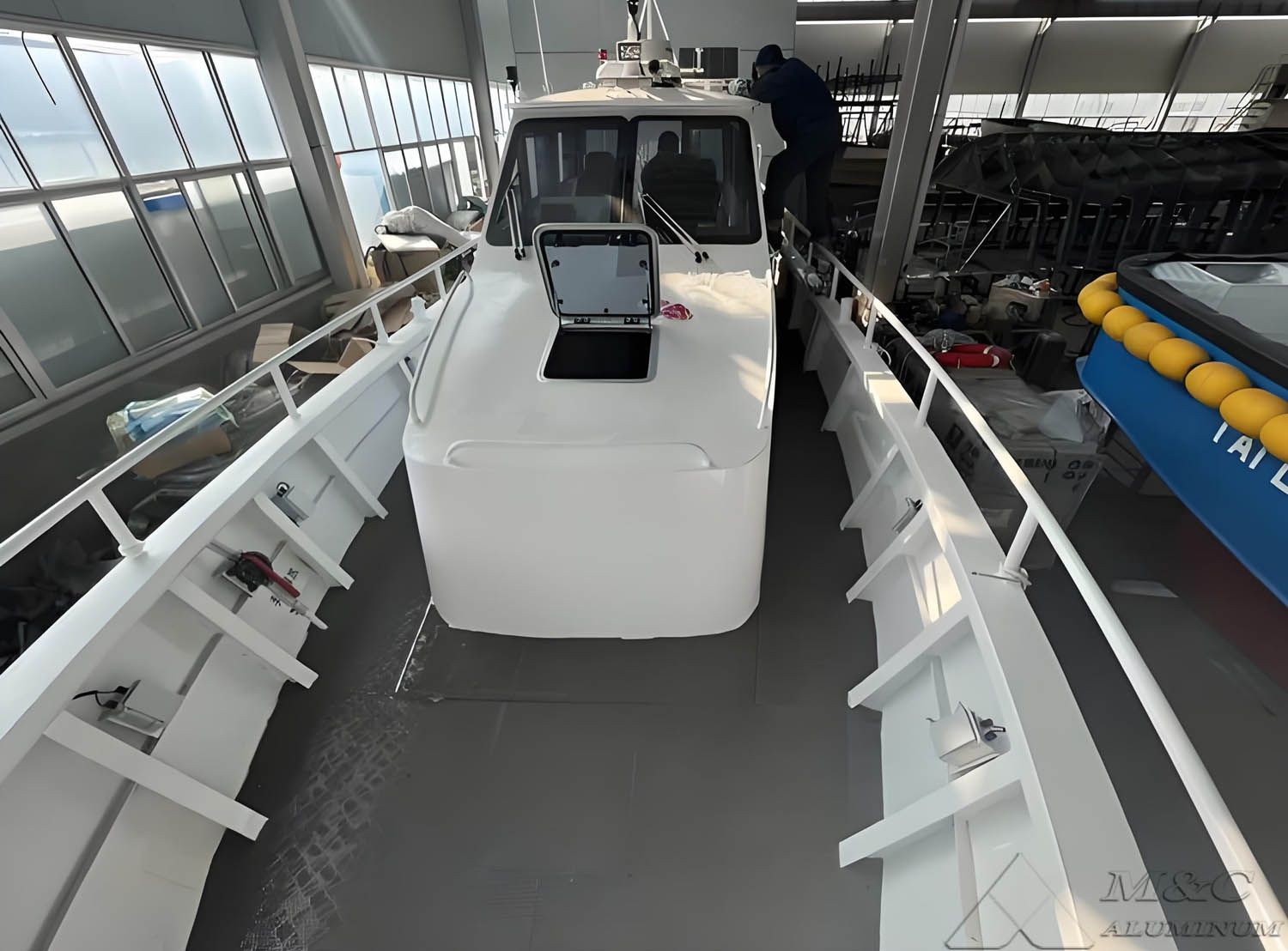

• Ship main decks

• Cabin walkway floors

• Wheelhouse floors

• Yacht decks

• Offshore working platforms

• Boarding steps and ladder treads

In these applications, materials must offer excellent anti-slip performance, corrosion resistance, and structural strength, all of which 5052 marine aluminum plates provide effectively.

How to Choose the Right Marine Aluminum Tread Plate

When selecting 5052 aluminum tread plates for marine applications, the following factors should be considered:

1. Material Certification

High-quality materials should meet marine classification standards such as:

ABS

DNV

LR

BV

CCS

2. Temper Selection

For marine decks, H114 or H32 temper is typically recommended to balance strength and formability.

3. Pattern Height and Uniformity

Clear and uniform patterns improve anti-slip performance and reflect higher manufacturing quality.

4. Plate Flatness

High-quality aluminum plates should have excellent flatness for easier installation and welding.

FAQ

Q: Do you support marine classification certifications?
A: Yes. We can provide CCS, ABS, LR, DNV and other classification certificates.

Q: Are you a direct manufacturer?
A: Yes. We are a source manufacturer and support customized specifications and sizes.

Q: What are the common thicknesses?
A: Common thicknesses range from 3.0–8.0 mm, and customization is available.

Q: How is the seawater corrosion resistance?
A: 5052 rust-proof aluminum has excellent salt spray resistance, making it highly suitable for marine environments.

Q: What is the difference between 5052 and 5083 tread plates?
A: 5052 aluminum plates offer good corrosion resistance and formability with relatively lower cost, suitable for most deck applications. 5083 aluminum provides higher strength and is often used for heavy-load ship structures.

Q: Is the anti-slip performance reliable?
A: Yes. The five-bar willow-leaf pattern provides stable anti-slip performance on wet decks.

Q: Can the plates be cut to custom sizes?
A: Yes. We support cutting, leveling, shearing, bending, and other processing services.

Q: What is the delivery time?
A: Standard specifications are available from stock, while customized orders typically take 25–35 days.

Q: Do you provide a quality guarantee?
A: Yes. We provide mill test certificates and quality assurance, guaranteeing genuine 5052 aluminum materials.
