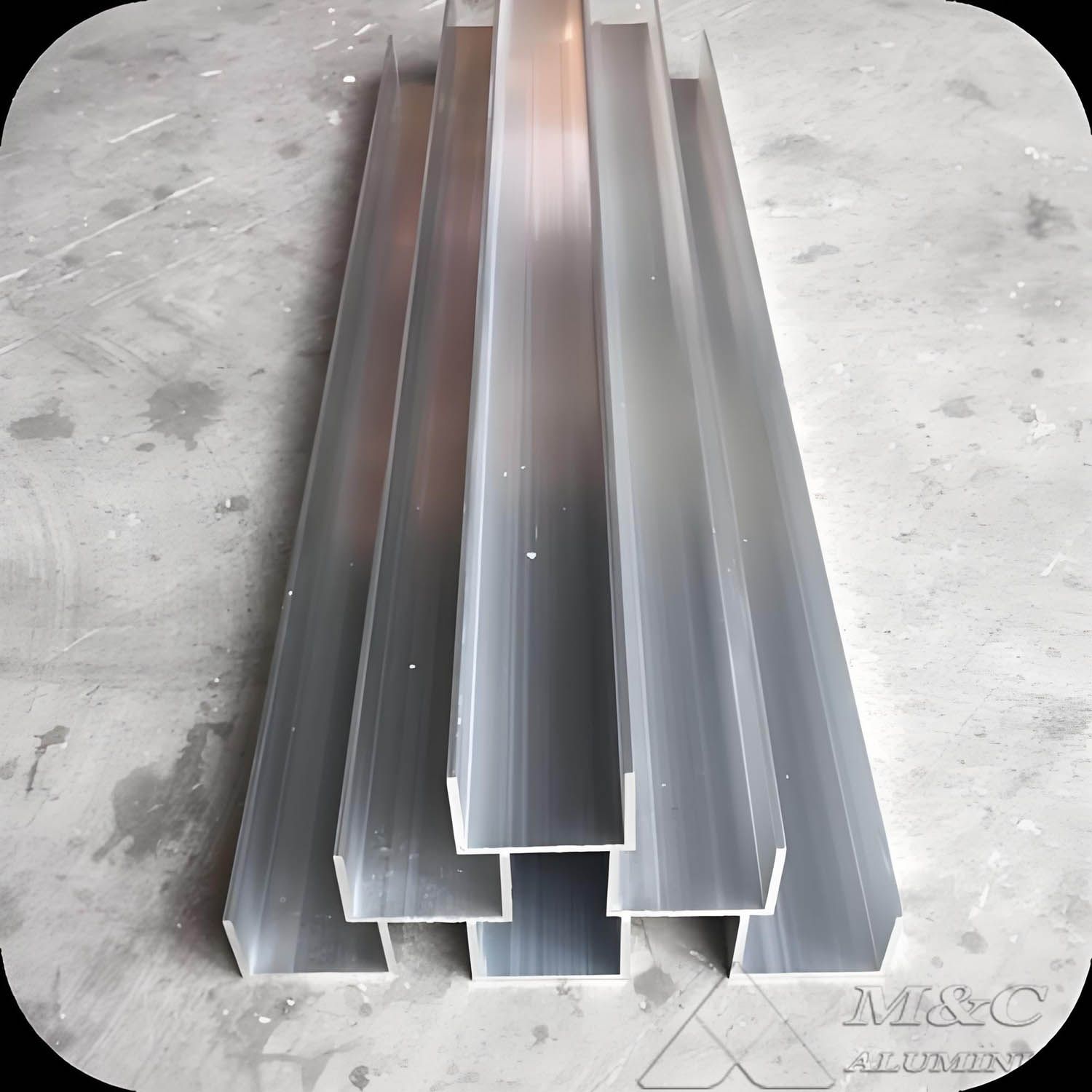

In modern shipbuilding material systems, 6061 aluminum alloy U channels have become important components in vessel superstructures and structural frameworks. Their combination of light weight, high strength, corrosion resistance, and easy processing makes them well suited for a wide range of marine applications.

What Is a 6061 Aluminum Alloy U Channel?

6061 is a heat-treatable Al-Mg-Si series aluminum alloy. Its main alloying elements are magnesium and silicon, with an appropriate amount of copper and other elements.

Through heat treatment, 6061 aluminum alloy can achieve good mechanical properties. It is therefore widely used in machinery manufacturing, transportation, construction, marine engineering, and industrial structural applications.

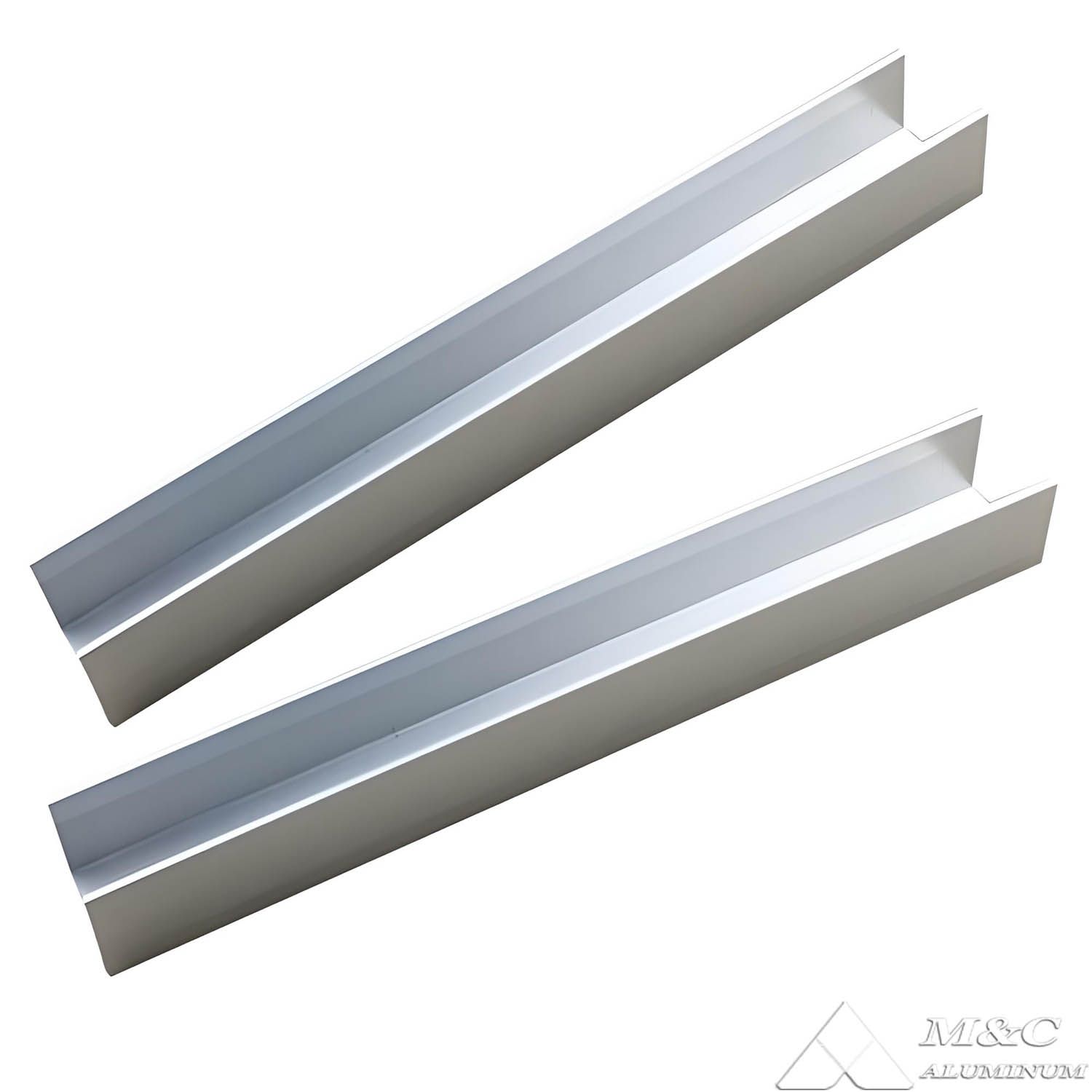

An extruded aluminum U channel is a structural profile with a distinctive U-shaped cross-section. It is produced by forcing heated aluminum billets through precisely designed extrusion dies. The two parallel flanges provide edge support and mounting surfaces, while the center web provides bending resistance and load distribution.

This manufacturing method creates continuous and uniform profiles, making aluminum U channels highly suitable for framing, edge protection, mounting, guide rails, and structural support applications.

For marine applications, 6061 aluminum alloy U channel is most commonly supplied in the T6 temper, meaning it has been solution heat-treated and artificially aged. In this condition, 6061-T6 typically offers tensile strength of approximately 290–350 MPa and yield strength of approximately 240–300 MPa.

With a density of only 2.70 g/cm³, about one-third that of steel, 6061-T6 U channels can significantly reduce structural weight while meeting comparable strength requirements.

Production Process of Aluminum U Channels

The production of 6061 aluminum alloy U channels generally includes the following steps:

1.Raw Material Preparation

Aluminum alloy billets and required alloying additions are prepared according to the specified chemical composition.

2.Melting

Aluminum and alloying elements are melted to produce molten aluminum alloy.

3.Casting

The molten aluminum alloy is cast into billets suitable for extrusion.

4.Heat Treatment

The alloy billets or extruded profiles undergo heat treatment to improve mechanical properties and achieve the required temper.

5.Cutting

The aluminum billets or profiles are cut to the required length.

6.Extrusion and Forming

Heated billets are extruded through U-channel dies to form profiles with the required dimensions and wall thickness.

7.Surface Treatment

The formed U channels may receive anodizing, coating, passivation, polishing, or other surface treatments to improve corrosion resistance and appearance.

Main Advantages of 6061 Aluminum Alloy U Channels for Marine Use

1. Good Strength-to-Weight Ratio

Aluminum alloy has a much lower density than steel. Using aluminum alloy profiles can effectively reduce the weight of marine structures.

Lower structural weight can help improve fuel efficiency, increase vessel speed, raise payload capacity, or reduce the overall load on the vessel’s hull and superstructure.

2. Good Corrosion Resistance

6061 aluminum alloy naturally forms a dense oxide film on its surface, providing good corrosion resistance in atmospheric environments.

For marine use, additional protection measures such as anodizing, painting, isolation from dissimilar metals, and appropriate drainage design may be required depending on the level of saltwater exposure.

3. Excellent Welding and Machining Performance

6061 aluminum alloy is suitable for MIG and TIG welding processes. Properly designed and executed welded joints can retain useful strength and corrosion resistance.

At the same time, 6061 has good machinability and can be adapted for drilling, punching, bending, stamping, milling, CNC machining, and other complex fabrication processes.

U channels can also be custom-extruded according to project drawings, allowing shipbuilders and equipment manufacturers to obtain profiles tailored to specific structural and installation requirements.

4. Efficient Cross-Sectional Design

The U-shaped cross-section provides good geometric stability.

Compared with a simple flat plate of similar weight, a properly designed U channel can offer higher structural stiffness. This makes it suitable for support, reinforcement, framing, guiding, and connection functions.

5. High Strength for Load-Bearing Structures

6061 aluminum alloy offers a relatively high level of strength. In heat-treated tempers such as T6 and T651, it can achieve high tensile and yield strength values.

This makes 6061 U channels suitable for frames, supports, mounting bases, equipment brackets, stiffeners, and other structural components that must withstand certain loads.

Specifications of 6061 Aluminum U Channels

Advantages of U-Channel Structures in Shipbuilding

Compared with flat plates, round tubes, square tubes, and angle aluminum, U channels offer distinctive benefits due to their open cross-sectional structure.

1. Improved Structural Stiffness

A U-shaped section can improve bending resistance while maintaining relatively low self-weight. It is particularly suitable for edge frames, brackets, rails, guide tracks, and longitudinal reinforcement structures.

Compared with a flat plate alone, the three-dimensional U-shaped section can significantly improve overall stiffness.

2. Easier Installation and Embedded Assembly

The cavity inside the U channel can accommodate panels, cables, sealing strips, partitions, or other connecting components.

This makes U channels well suited for modular installation structures, interior partitions, equipment enclosures, deck framing, and panel support systems.

3. Better Drainage and Cable Routing Design

When properly designed with drainage holes, weep holes, or ventilation openings, U channels can provide both structural support and drainage capability.

For vessel decks, compartment edges, equipment platforms, and exposed structures, proper design can help avoid the accumulation of water, salt deposits, and contaminants.

The interior channel can also be used to route wire harnesses, control cables, or small pipelines. However, cable protection, fastening intervals, abrasion resistance, drainage, inspection access, and maintenance convenience must be considered.

4. Easy Connection with Other Components

6061 aluminum U channels can be connected to other aluminum alloy structural components through welding, bolts, rivets, angle brackets, clamps, or purpose-designed connectors.

For modular marine cabins, equipment supports, interior frames, and decorative structures, this connection flexibility can improve assembly efficiency.

Surface Treatment of 6061 Aluminum U Channels

Marine environments place higher requirements on surface protection. In addition to the original mill finish, further surface treatments can be selected according to the intended application.

1. Anodizing

Anodizing forms a more stable oxide layer on the aluminum surface, improving corrosion resistance and wear resistance.

It is commonly used for marine interior components, decorative profiles, handrails, equipment frames, and moderately exposed structures.

2. Coating or Painting

Suitable paint systems or powder coatings can be applied according to the vessel’s overall coating specification.

Coating systems should be compatible with the marine corrosion-protection system and should be selected based on exposure conditions, expected service life, and maintenance requirements.

3. Passivation and Other Surface Treatments

For specific marine applications, passivation or other specialized treatments may be used based on the actual corrosive environment.

However, surface treatment must be compatible with the vessel’s complete corrosion-protection system. More surface treatment is not necessarily better; the correct treatment should be selected based on practical exposure conditions and design requirements.

Applications of 6061 Aluminum Alloy U Channels in Ships

6061 aluminum alloy U channels can be used in many marine structural and equipment-related applications, including:

• Hull framework and secondary hull support structures

• Hull side panel supports and bottom panel support structures

• Deck framing, deck supports, and decorative deck components

• Cabin structures, cabin side panels, cabin floor supports, and cabin reinforcement members

• Bulkhead frames, bulkhead supports, and partition structures

• Door frames, hatch frames, door support members, and locking-related structures

• Hatch cover frames, hatch cover support structures, and protective edge profiles

• Deck handrail supports and handrail decorative components

• Marine stair supports, stair frames, and ladder structures

• Exterior deck structures, exterior handrails, and exterior decorative profiles

• Interior deck structures, interior railings, partitions, and decorative systems

• External cable supports and mounting brackets for marine equipment

• Equipment platforms, instrument supports, machine guards, and installation bases

• Interior and exterior vessel trim, decorative strips, and cladding support profiles

• Ship repair, structural reinforcement, and replacement of auxiliary structural components

For major load-bearing hull structures, the selected material and profile must comply with applicable vessel design rules, class society requirements, welding procedures, and corrosion-protection specifications.

Selecting Aluminum Alloys for Extruded U Channels: 5052, 5083, and 6061

Although 6061, 5052, and 5083 are all commonly used aluminum alloys, their application focus is not exactly the same.

6061 Aluminum Alloy

6061 is heat-treatable and can achieve relatively high strength. It also offers good machining performance and is particularly suitable for extruded profiles, supports, brackets, frames, and certain structural components.

For U channels, equipment supports, internal reinforcements, mounting structures, and customized extruded marine profiles, 6061 is often a practical choice.

5052 Aluminum Alloy

5052 belongs to the Al-Mg alloy family. It has good corrosion resistance and formability and is commonly used for sheet products, thin-gauge structures, panels, and marine components that require good corrosion resistance and forming capability.

5083 Aluminum Alloy

5083 is a typical marine-grade Al-Mg alloy with excellent resistance to marine corrosion and good welding performance. It is widely used in major ship structures such as hulls, decks, bulkheads, and tanks.

Therefore, for primary hull structures, 5083 and other marine-grade aluminum alloys are often preferred. However, for extruded profiles, equipment supports, internal stiffeners, secondary structural members, and specially designed components, 6061 aluminum alloy U channels may be a more suitable solution.

Conclusion

6061 aluminum alloy U channel is a versatile extruded aluminum profile for shipbuilding and marine engineering. Its combination of lightweight performance, high strength, good machinability, weldability, and adaptable cross-sectional design makes it suitable for marine stiffeners, bulkhead supports, equipment brackets, platforms, frames, cable supports, and interior structural components.

When selecting 6061-T6 U channels for marine use, factors such as load conditions, saltwater exposure, welding requirements, surface protection, galvanic corrosion prevention, drainage design, and classification requirements should be considered.

With proper alloy selection, profile design, fabrication, and corrosion protection, 6061 aluminum U channels can provide durable, lightweight, and efficient structural solutions for a wide range of marine applications.
