What Is ASTM B466 C70600 Seamless Copper-Nickel Pipe?

ASTM B466 is a standard developed by ASTM International for seamless copper-nickel pipe and copper-nickel condenser tubing. It is applicable to seawater transport, heat exchangers, condensers, and industrial fluid systems.

C70600 is commonly known as a 90/10 copper-nickel alloy, containing approximately 90% copper and 10% nickel, with small additions of iron and manganese to improve corrosion resistance and overall strength. This alloy combines excellent seawater corrosion resistance, erosion-corrosion resistance, thermal conductivity, formability, and weldability. It has a well-established and widely proven application record in marine environments.

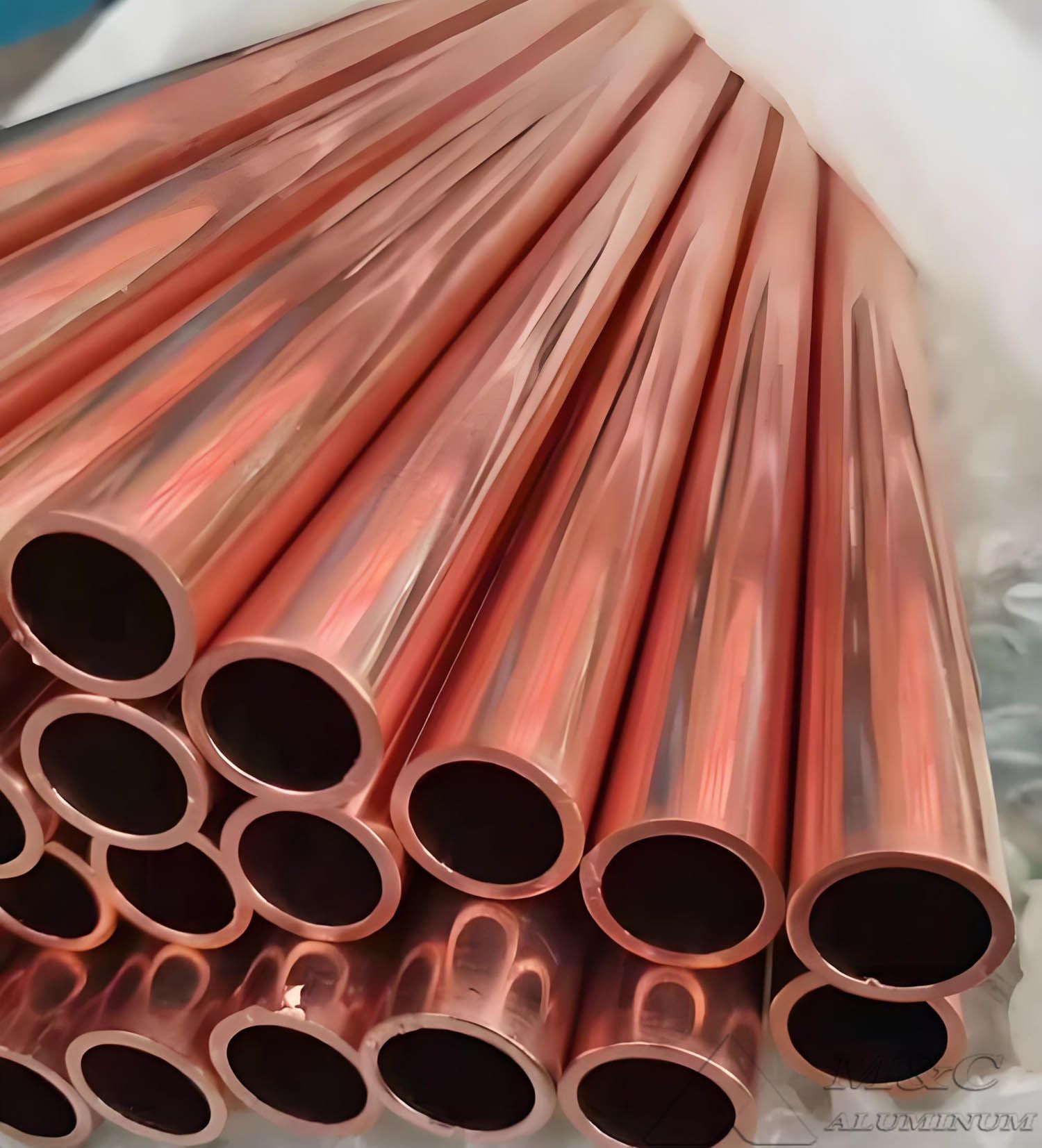

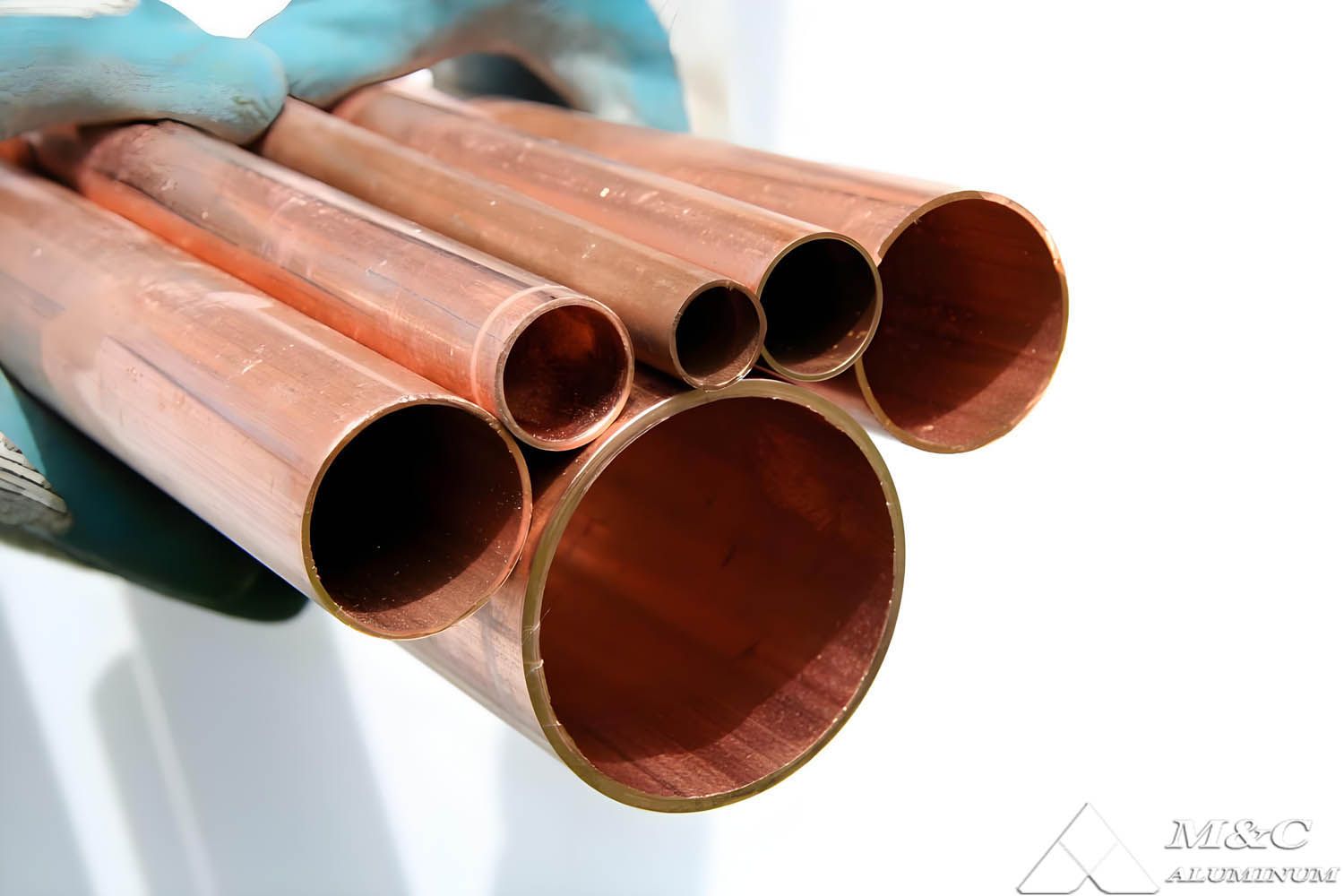

C70600 seamless copper-nickel pipe is manufactured through seamless production processes including extrusion, piercing, cold drawing, cold rolling, annealing, straightening, and cut-to-length processing. Since it has no longitudinal weld seam, seamless copper-nickel pipe offers clear advantages in pressure resistance, structural uniformity, and applications requiring high reliability.

Main Chemical Composition (%)

Note: The final chemical composition shall comply with the applicable ASTM B466 requirements and the agreed purchase specification.

Main Advantages of ASTM B466 C70600 Seamless Copper-Nickel Pipe

1. Excellent Seawater Corrosion Resistance

The most significant feature of C70600 is its excellent resistance to seawater corrosion. It can effectively resist pitting corrosion, crevice corrosion, and marine atmospheric corrosion.

During long-term service, a stable and dense protective film forms on the pipe surface. This film further improves corrosion resistance, extends service life, and reduces maintenance costs.

For this reason, C70600 copper-nickel pipe is widely used in seawater cooling systems, marine pipelines, desalination plants, offshore facilities, and heat exchange equipment.

2. Resistance to Stress Corrosion Cracking

C70600 copper-nickel pipe is not highly sensitive to stress corrosion cracking, commonly referred to as SCC, in seawater and marine atmospheric environments.

Compared with zinc-containing brass materials, C70600 is far less susceptible to SCC. This characteristic is especially important for marine piping systems exposed to cyclic stress, vibration, pressure fluctuations, and dynamic loads.

3. Excellent Erosion-Corrosion Resistance

Due to the beneficial effect of iron additions, C70600 performs well in high-velocity seawater systems.

In clean seawater, it can generally withstand water flow velocities of approximately 2.2–2.5 m/s. In mildly saline solutions, it may withstand flow velocities of up to approximately 4 m/s, depending on system design, water chemistry, temperature, suspended solids, and operating conditions.

This makes C70600 a suitable choice for seawater cooling lines, pump systems, condenser tubes, and other applications where fluid flow may cause erosion-corrosion.

4. Resistance to Marine Biofouling

Copper ions have natural anti-fouling properties and can help inhibit the attachment and growth of marine organisms, including barnacles, algae, and oysters.

This feature makes C70600 copper-nickel pipe particularly valuable in piping systems that remain immersed in seawater for long periods. In many marine applications, it offers better biofouling resistance than carbon steel and stainless steel.

5. Superior Thermal Conductivity

Compared to stainless steel, copper-nickel alloys generally offer superior thermal conductivity. Consequently, C70600 is suitable not only for piping systems but also for condensers, evaporators, heat exchangers, and other heat transfer equipment.

6. Good Workability

C70600 copper-nickel alloy exhibits excellent cold-working properties and can be processed using techniques such as cold drawing, flaring, bending, and cutting.

7. Welding Performance

90/10 copper-nickel tubing offers excellent weldability and is compatible with welding processes such as TIG and MIG.

Specifications

Typical Applications

C70600 seamless copper-nickel pipe is used across a wide range of industrial sectors, especially in marine and seawater-related engineering applications.

1.Marine and Offshore Engineering

• Seawater cooling systems: Heat exchanger tube bundles for main and auxiliary engine coolers (condensers, lube oil coolers, fresh water coolers)

• Seawater piping systems: Ballast systems, bilge systems

• Fire-fighting systems: Fire-fighting water piping for offshore platforms and vessels

• Marine condensers and heat exchangers

2. Seawater Desalination

Heat exchanger tubes and piping in Multi-Stage Flash (MSF) and Reverse Osmosis (RO) units

3. Power Generation Industry

Condenser tubes and feedwater heater tubes for coastal and nuclear power plants

4. Oil, Gas, and Chemical Platforms

• Equipment and piping for handling seawater, brine, and non-oxidizing acid solutions

• Seawater and fire-fighting water systems for offshore oil and gas platforms

5. Other Applications

• Automotive brake lines (used in high-performance vehicles such as Volvo, Audi, and Porsche)

• Hydraulic lines; aquaculture cage frameworks

• Coinage

ASTM B466 C70600 Seamless Copper-Nickel Pipe vs. Welded Copper-Nickel Pipe

Copper-nickel pipe can be produced as either seamless pipe or welded pipe. Neither is universally better in every situation; the appropriate choice should be based on service conditions, size range, cost considerations, and applicable standards.

Main Features of Seamless Copper-Nickel Pipe

No longitudinal weld seam

More uniform pipe wall structure

Better suited for high-pressure, pulsating-pressure, and vibration conditions

Suitable for systems requiring high reliability

Commonly used in marine pressure piping, seawater systems, hydraulic lines, and critical heat exchange equipment

Frequently available in small and medium diameters

Main Features of Welded Copper-Nickel Pipe

May offer a cost advantage in certain sizes and quantities

Easier to manufacture in large diameters

Suitable for many conventional heat transfer, low-pressure conveying, and structural applications

Weld quality, non-destructive testing, and post-weld treatment have a significant impact on final performance

For high-pressure seawater systems, critical cooling systems, shipboard piping systems, and engineering projects with strict reliability requirements, ASTM B466 C70600 seamless copper-nickel pipe is generally a more dependable option.

Maintenance and Care Guidelines

1.Regular Inspection

Use non-destructive testing methods, such as ultrasonic testing or radiographic testing, to inspect the internal and external surfaces of the pipe for corrosion, wall thinning, damage, or other defects.

2.Cleaning and Flushing

Flush pipelines regularly to prevent biological fouling, sediment accumulation, and deposits. Proper cleaning helps maintain flow efficiency, heat transfer performance, and corrosion resistance.

3.Avoid Mechanical Impact

Copper-nickel alloy pipe is relatively softer than many steel materials. Avoid excessive mechanical impact, improper clamping, over-bending, or accidental damage during handling, installation, and maintenance.

4.Welding Precautions

During welding, heat input should be properly controlled to avoid adverse effects in the heat-affected zone. Use suitable filler materials and qualified welding procedures, and perform appropriate inspection after welding to ensure joint quality and corrosion performance.
