In ships, marine engineering projects, coastal power plants, seawater desalination facilities, offshore platforms, and industrial circulating cooling systems, seawater is an abundant, cost-effective, and efficient cooling medium. However, seawater contains high levels of chloride ions, dissolved oxygen, salts, sand, suspended solids, microorganisms, and marine fouling organisms, all of which can cause significant corrosion of metal pipelines and heat-exchange equipment.

Therefore, material selection is critical for seawater cooling systems. Among the many seawater-resistant materials available, C70600 copper nickel pipe has become one of the most widely used options for seawater cooling systems, heat exchangers, and marine piping. This is due to its excellent seawater corrosion resistance, good resistance to erosion-corrosion, stable thermal conductivity, and extensive proven engineering experience.

What Is C70600 Copper Nickel Pipe?

C70600, also known as UNS C70600, is a single-phase solid-solution copper alloy composed of copper as the base metal with additions of nickel (Ni), iron (Fe), manganese (Mn), and other elements. Its typical composition contains approximately 90% copper and 10% nickel, which is why it is commonly referred to as a 90/10 copper-nickel alloy.

Its principal composition is approximately as follows:

Copper (Cu): Balance

Nickel (Ni): Approximately 10%

Iron (Fe): Small addition

Manganese (Mn): Small addition

Other elements: Strictly controlled at low levels

In seawater systems, C70600 is commonly supplied in the form of seamless pipes, welded pipes, fittings, flanges, plates, and bars. Among these products, copper nickel pipe is the most common form of application.

Why Is C70600 Copper Nickel Pipe Suitable for Seawater Cooling Systems?

1. Excellent Seawater Corrosion Resistance

In seawater environments, C70600 copper nickel pipe forms a stable protective surface film. This film can effectively reduce chloride-ion attack and electrochemical corrosion. In both stagnant and flowing seawater, its corrosion rate is extremely low—typically less than 0.025 mm/year.

2. Natural Resistance to Marine Biofouling

The trace release of copper ions can inhibit the growth of certain marine organisms and microorganisms. C70600 copper nickel alloy naturally resists the attachment of marine organisms such as barnacles, algae, and oysters.

3. Resistance to High-Velocity Seawater Erosion-Corrosion

The iron added to C70600 refines the grain structure and improves the adhesion and stability of the protective film. As a result, the alloy is not easily damaged by erosion-corrosion under seawater flow velocities of up to 2.5 m/s.

4. Good Resistance to Polluted Seawater

C70600 is suitable not only for clean seawater but also offers excellent corrosion resistance in moderately polluted seawater and brackish estuarine water. This significantly expands its range of applications.

5. Good Thermal Conductivity

Compared with stainless steel and titanium alloys, copper-nickel alloys offer relatively good thermal conductivity. C70600 copper nickel pipe can transfer heat efficiently, helping improve the heat-exchange performance of condensers, heat exchangers, and coolers.

6. Good Fabrication and Welding Performance

C70600 copper nickel pipe has good cold-working and hot-working properties. During engineering installation, it can be cut, bent, expanded, flared, welded, and connected with flanges.

CuNi 90/10 Copper Nickel Pipe Specifications

MecMelting Pointhanical and Physical Properties

Applications of C70600 Copper Nickel Pipe

1. Shipbuilding and Marine Engineering

Seawater cooling systems for marine main engines and auxiliary engines, including condensers, lubricating oil coolers, and freshwater coolers

Marine air-conditioning heat-exchanger tubes, ballast water systems, and bilge piping

Seawater piping and fire protection systems for offshore oil platforms and FPSO vessels

Cooling tube bundles for offshore wind turbine towers

2. Power Industry

Steam turbine condensers in coastal power plants

Cooling heat exchangers for power generation units

Auxiliary cooling tube bundles in nuclear power plants

3. Seawater Desalination

Heat-transfer tubes and piping for Multi-Stage Flash (MSF) desalination systems

Heat-transfer tubes and piping for Low-Temperature Multi-Effect Distillation (LT-MED) systems

4. Chemical and Petrochemical Industries

Cooling equipment for seawater, brine, and non-oxidizing acid solutions

Seawater cooling heat exchangers in petrochemical plants

Manufacturing Process and Welding Performance of Copper Nickel Pipe

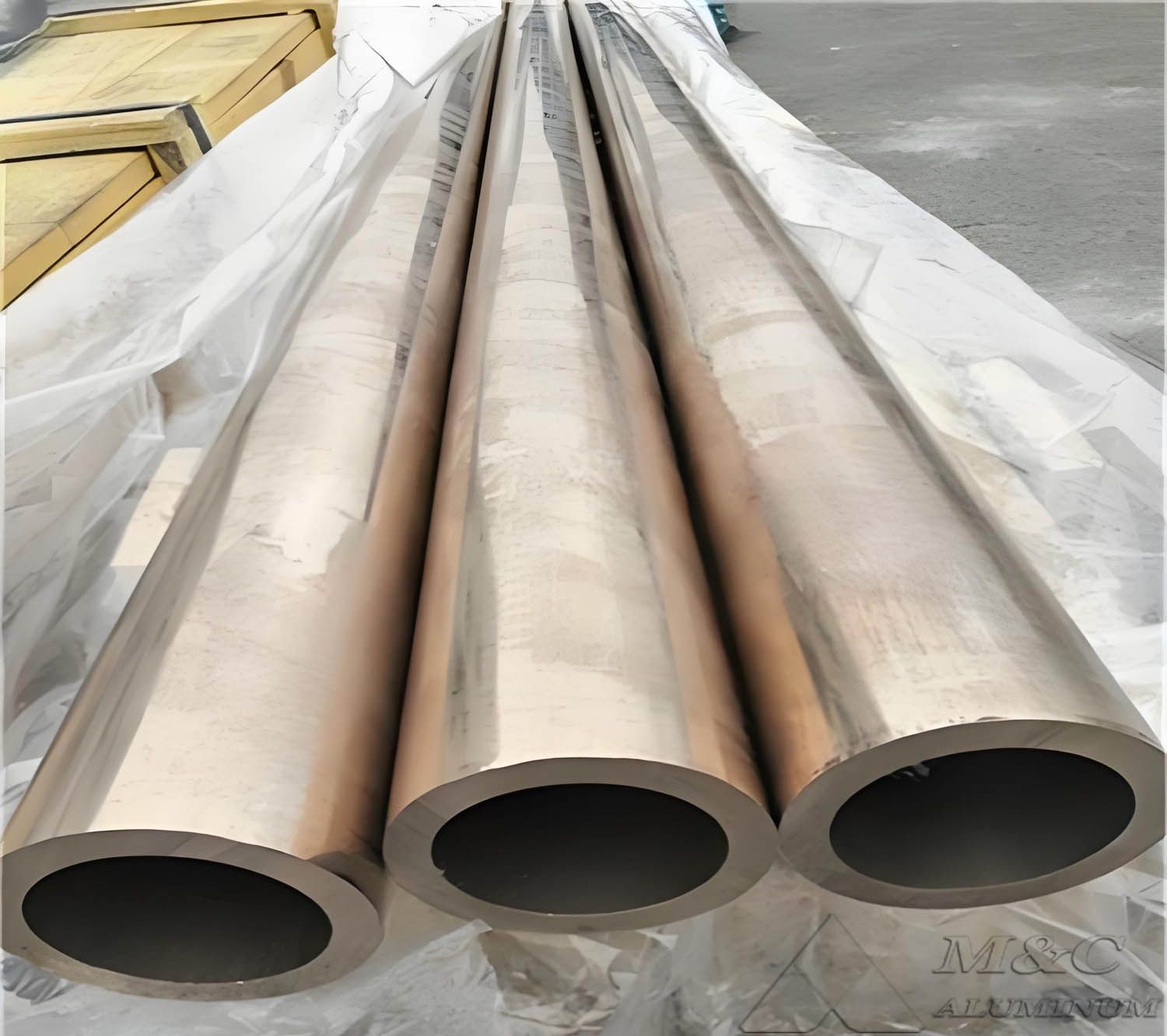

C70600 copper nickel seamless pipe is typically manufactured through a seamless forming process involving hot-extruded billets followed by multi-pass cold drawing and precision rolling. This process eliminates the pressure-bearing weakness associated with welded seams.

Finished pipes are stress-relief annealed. The internal surfaces may undergo mirror polishing, followed by high-pressure nitrogen degreasing and purging to ensure a clean, oil-free interior surface.

Weldability is one of the key advantages of C70600. Because no phase transformation occurs during welding, this alloy can be readily joined using a variety of welding methods, including:

Gas Tungsten Arc Welding (GTAW / TIG)

Gas Metal Arc Welding (GMAW / MIG)

Shielded Metal Arc Welding (SMAW)

Brazing and soldering

Argon back purging is generally used during welding to protect the backside of the weld and ensure weld quality. Properly welded joints offer high strength, while their corrosion resistance is close to that of the base metal, avoiding weak corrosion points throughout the piping system.

Comparison Between C70600 and C71500 (70/30 Copper Nickel)

Both C70600 and C71500 are important members of the copper-nickel alloy family, but they are designed for different performance priorities.

With its lower cost and well-balanced combination of properties, C70600 has become one of the most widely used materials for commercial seawater piping applications. C71500, with higher strength and superior corrosion resistance, is mainly used in specialized applications where operating conditions are more demanding.
