In seawater piping systems, offshore platforms, and shipbuilding projects, the reliability and corrosion resistance of flange connections directly affect the safe operation of the entire system. While carbon steel flanges can corrode rapidly in seawater environments, stainless steel flanges may face the risk of chloride-induced stress corrosion cracking. C70600 copper-nickel socket weld flanges, with their outstanding marine corrosion resistance and broad pressure-rating coverage, have become a preferred connection solution for marine engineering piping systems.

What Is a C70600 Copper-Nickel Socket Weld Flange?

C70600 is a 90/10 copper-nickel alloy based on copper. It typically contains approximately 9%–11% nickel, together with iron and manganese additions that improve corrosion resistance and resistance to erosion in flowing seawater.

A socket weld flange is a flange type designed primarily for small-diameter piping connections. During installation, the pipe is inserted into the socket bore of the flange and then joined by a fillet weld around the outside of the pipe at the flange hub.

Compared with weld neck flanges, socket weld flanges are generally suitable for smaller pipe sizes. Compared with threaded flanges, welded socket connections provide better sealing reliability and vibration resistance.

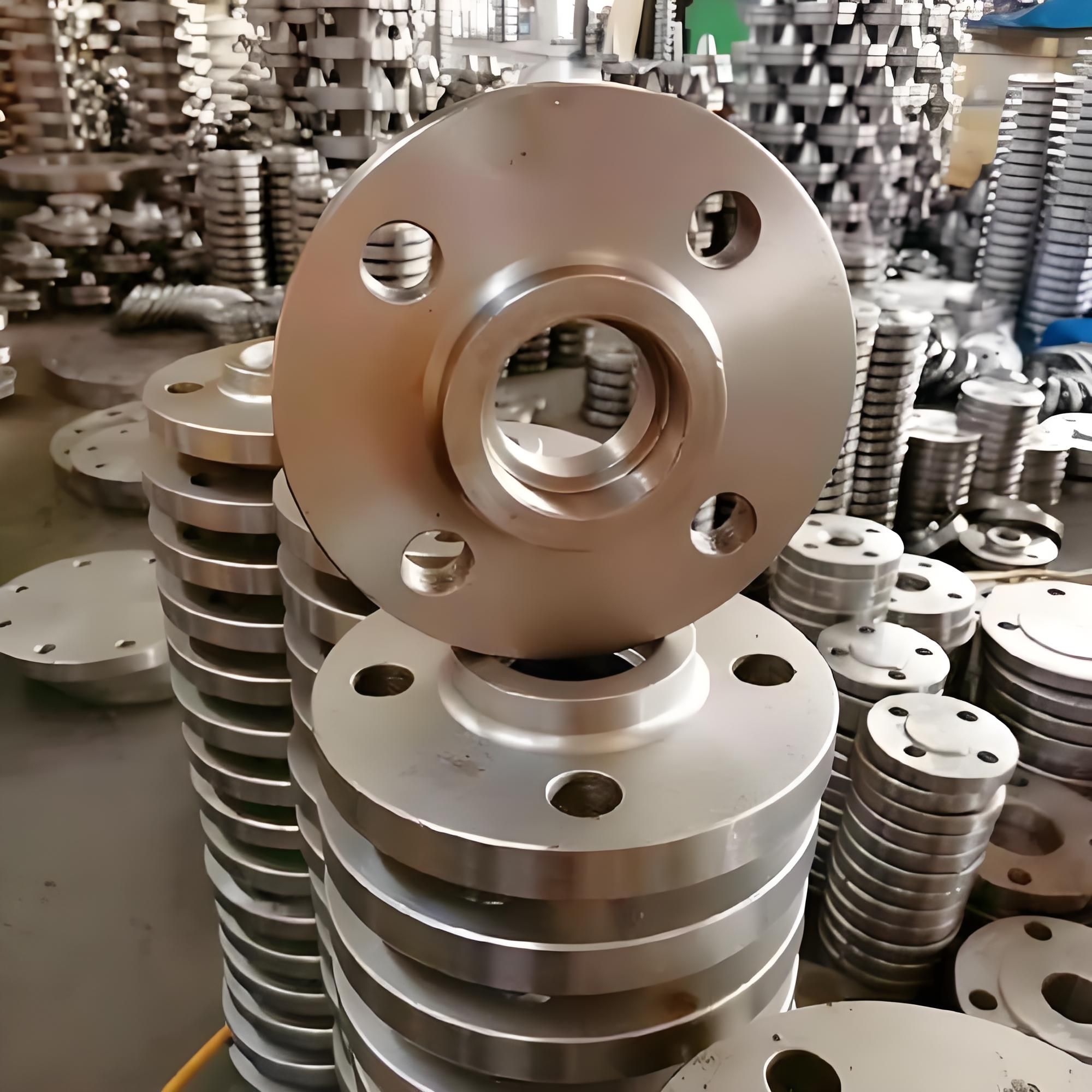

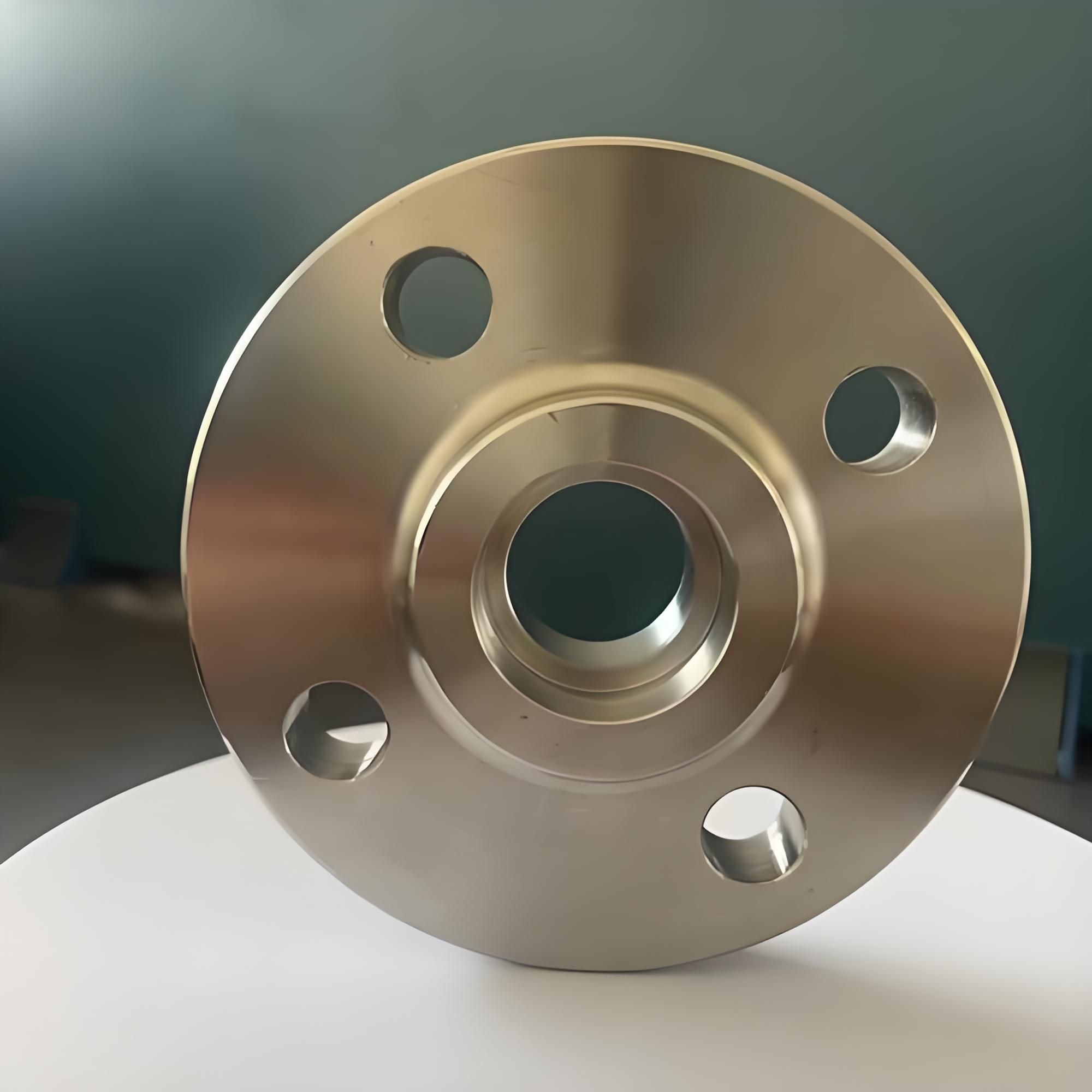

C70600 copper-nickel socket weld flanges, also known as 90/10 copper-nickel socket weld flanges, CuNi 90/10 SW flanges, or UNS C70600 socket weld flanges, offer excellent seawater corrosion resistance, good erosion-corrosion resistance, and stable mechanical properties. They are important fittings for seawater piping systems and small-bore piping applications requiring highly reliable connections.

Common Specifications of C70600 Socket Weld Flanges

C70600 copper-nickel socket weld flanges are mainly used for small-diameter piping systems. Standard and customized specifications can be supplied according to applicable standards and project requirements.

Key Advantages of C70600 Socket Weld Flanges

1. Excellent Seawater Corrosion Resistance

C70600 copper-nickel alloy forms a stable and dense protective surface film in seawater environments. It offers good resistance to uniform corrosion, pitting corrosion, and crevice corrosion. Compared with ordinary carbon steel, C70600 is more suitable for long-term service in seawater, saltwater, and chloride-containing media.

2. Good Resistance to Flowing Seawater Erosion

The iron content in copper-nickel alloy improves resistance to erosion caused by flowing seawater. Therefore, C70600 flanges can be used together with copper-nickel pipes, elbows, tees, and reducers in seawater circulation, cooling-water, and seawater transfer piping systems.

3. Resistance to Marine Biofouling

In natural seawater, copper-nickel alloys can release trace amounts of copper ions, which help inhibit the attachment of barnacles, shellfish, algae, and other marine organisms. This helps reduce pipeline blockage, scaling, and cleaning frequency.

4. Suitable for Welded Installation

Socket weld flanges are connected to pipes by fillet welding and provide good connection stability after installation. C70600 copper-nickel alloy can generally be welded using TIG or MIG processes. Copper-nickel filler metals compatible with the base material are recommended, and welding procedure qualification should be performed in accordance with project specifications.

5. Long Service Life and Lower Maintenance Costs

For shipbuilding and offshore projects, pipeline maintenance often involves shutdowns, dismantling, offshore construction work, and substantial labor costs. Using corrosion-resistant C70600 copper-nickel flanges helps reduce maintenance risks caused by corrosion leakage and premature component failure.

C70600 Socket Weld Flange Pressure Rating Systems

C70600 socket weld flanges, also referred to as SW flanges, are available in a wide range of pressure ratings and can be manufactured in accordance with the following standard systems.

ASME B16.5 Standard – American Pressure Classes

Among these ratings, Class 150, Class 300, and Class 600 are the most commonly used pressure classes for C70600 copper-nickel socket weld flanges.

The actual manufacturable pressure class, size range, and flange configuration should be confirmed according to project standards, pipe diameter, wall thickness, material condition, and pressure-temperature service conditions.

Important Note: Class ratings such as Class 150, 300, and 600 are not fixed working-pressure values. The actual allowable pressure must be determined according to the material pressure-temperature rating, service temperature, flange standard, flange facing, gasket type, bolting material, and complete piping-system design.

EEMUA Standard – British Marine Engineering Practice

EEMUA 145 and EEMUA 234 are engineering standards specifically developed for copper-nickel seawater piping systems. They define two principal pressure ratings:

• 16 bar rating – Suitable for service temperatures from -29°C to +75°C and applicable to most seawater piping conditions.

• 20 bar rating – Suitable for service temperatures from -29°C to +38°C and intended for seawater systems requiring higher pressure capability.

In practical marine engineering applications, EEMUA standards are often used together with ASME B16.5 or other applicable flange standards to provide more targeted design guidance for copper-nickel seawater piping systems.

DIN/EN Standards – European Pressure Ratings

C70600 socket weld flanges can also be manufactured in accordance with DIN/EN standards, with pressure ratings ranging from PN 6 to PN 100.

European standard flanges are widely used in petrochemical facilities, shipbuilding projects, and offshore engineering applications in Europe and other international markets.

Common PN ratings include:

PN 6

PN 10

PN 16

PN 25

PN 40

PN 63

PN 100

Structural Advantages of Socket Weld Flanges

The distinguishing feature of a socket weld flange is the internal shoulder, or socket stop. The pipe is inserted into the socket bore until it reaches the internal shoulder, and a fillet weld is then applied around the outer circumference of the pipe.

This design provides several advantages.

Easy Installation and Accurate Alignment

Once the pipe is inserted into the flange socket, it is naturally aligned and positioned. This simplifies welding operations and is particularly suitable for piping installations in confined spaces.

Reliable Weld Quality

The fillet weld distributes stress relatively uniformly and is easier to control during fabrication. Socket weld flanges are suitable for TIG and MIG welding processes used with copper-nickel alloys.

Ideal for Small- and Medium-Bore Piping

Socket weld flanges are typically used for piping sizes from NPS 1/2" to NPS 4", making them an ideal choice for small- and medium-diameter seawater piping systems.

Common Standards for C70600 Socket Weld Flanges

C70600 copper-nickel socket weld flanges and related piping products may be manufactured or supplied with reference to the following standards, depending on the product form and project specification:

ASTM B151 / B151M

ASTM B171

ASTM B122 / B122M

ASTM B466 / B466M

ASTM B111 / B111M

Relevant EN standards for copper-nickel alloy materials

Classification society material rules and project technical specifications

Applicable material standards should be confirmed based on the actual manufacturing route, such as forging, machining, plate fabrication, or custom-made components.

Typical Applications

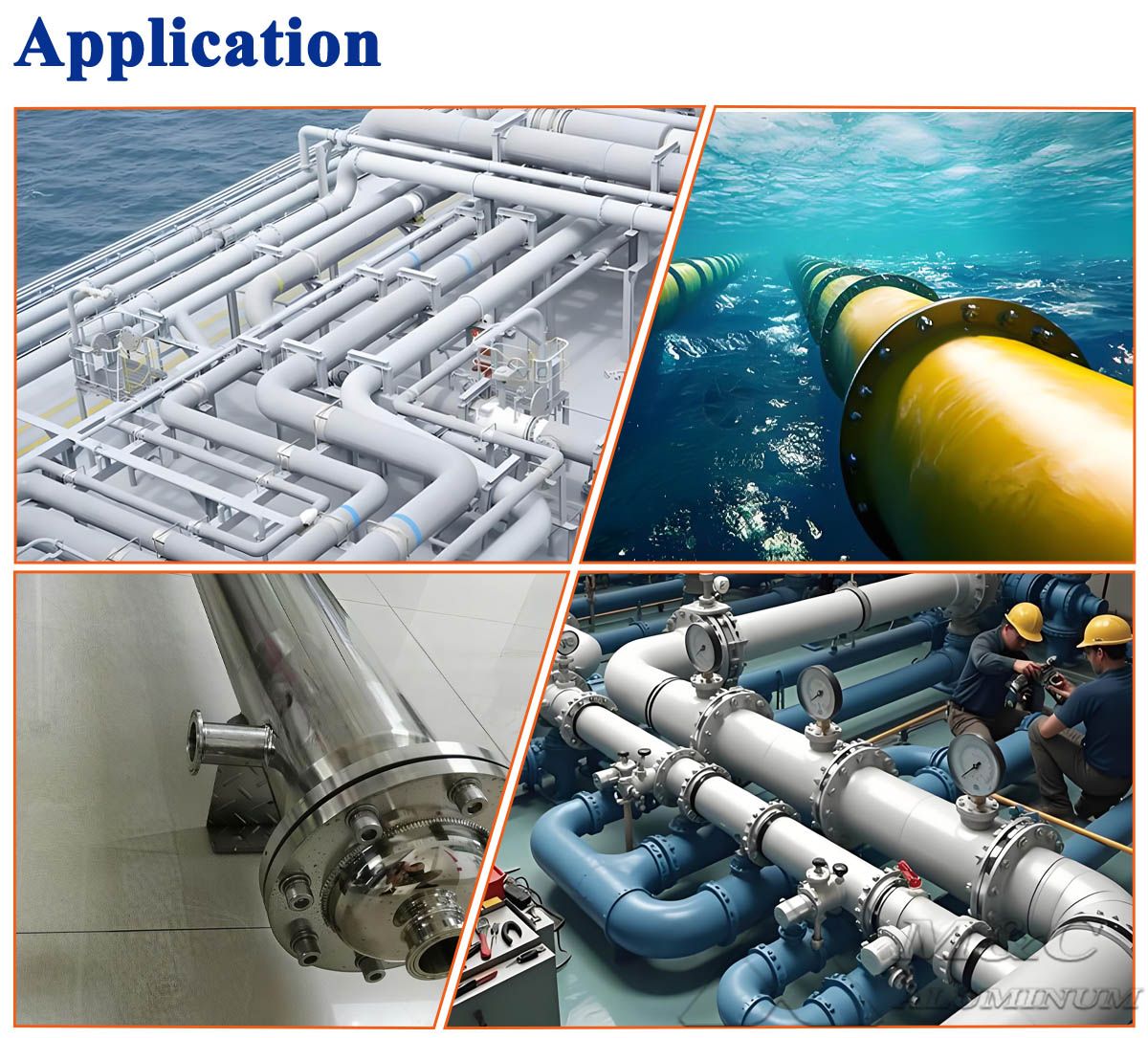

C70600 copper-nickel socket weld flanges are widely used in the following industries and systems:

Shipbuilding

• Ballast water systems

• Seawater cooling pipelines

• Seawater fire-fighting systems

Offshore Platforms

• Seawater lift systems

• Fire-fighting systems

• Process piping systems

Seawater Desalination Plants

• Pipeline connections for multi-stage flash desalination systems

• Pipeline connections for reverse-osmosis desalination systems

Power Plants and Petrochemical Facilities

• Seawater cooling-water systems

• Heat-exchanger piping systems

Marine Piping Systems

• Fuel piping systems

• Hydraulic piping systems

• Auxiliary seawater systems

In these systems, C70600 socket weld flanges are commonly used together with C70600 copper-nickel seamless pipes, welded pipes, elbows, tees, reducers, pipe caps, and valves. Using compatible copper-nickel materials throughout the piping system can help reduce the risk of galvanic corrosion caused by dissimilar-metal contact.

How to Select the Right C70600 Flange Pressure Rating

The following steps can help engineers and buyers select the appropriate C70600 socket weld flange pressure class.

Step 1: Determine the Design Pressure

First, identify the maximum design pressure of the piping system rather than relying only on the normal operating pressure.

Step 2: Determine the Design Temperature

Confirm the applicable pressure-temperature rating according to the actual operating or design temperature of the system.

Step 3: Confirm Pipe Size and Wall Thickness

Confirm the NPS or DN size, nominal outside diameter, and pipe wall thickness to ensure proper matching between the socket weld flange and the pipe.

Step 4: Confirm the Applicable Flange Standard

Clearly identify whether the project uses ASME B16.5, EEMUA, EN/DIN, JIS, GB, or another applicable standard.

Step 5: Select the Pressure Rating

Choose the correct Class or PN rating based on design pressure, design temperature, flange size, material requirements, and project specifications.

Step 6: Verify the Complete Connection System

The final design should consider the entire connection system, including:

Flange

Pipe

Weld joint

Gasket

Bolts and nuts

Overall piping design

Only when the complete connection system meets the relevant design requirements can safety and reliability in actual operation be ensured.
