In ships, offshore platforms, seawater desalination plants, coastal power stations, and seawater cooling systems, pipelines are continuously exposed to chloride-containing seawater. Ordinary carbon steel fittings are prone to rusting and perforation in marine environments. Certain stainless steel materials may also face risks of pitting corrosion and crevice corrosion under unsuitable water quality, elevated temperatures, or stagnant conditions.

By comparison, C70600 copper-nickel alloy offers excellent resistance to seawater corrosion and erosion-corrosion, as well as good weldability and long-term service stability. It has therefore become one of the widely used materials for marine piping systems.

What Is C70600 Copper-Nickel Alloy?

C70600 is a typical 90/10 copper-nickel alloy, also known as CuNi 90/10 or 90-10 Copper-Nickel. It is one of the most widely used copper-nickel alloys in marine engineering.

The alloy contains approximately 9%-11% nickel, along with controlled amounts of iron and manganese. These elements help the material form a protective surface film in seawater environments, providing good resistance to uniform corrosion, localized corrosion, and marine biofouling.

Therefore, C70600 is not only suitable for seawater pipes, but can also be manufactured into a wide variety of piping fittings, including elbows, tees, reducers, flanges, caps, pipe spools, and customized fittings-helping create a more consistent and corrosion-resistant material system throughout the entire pipeline.

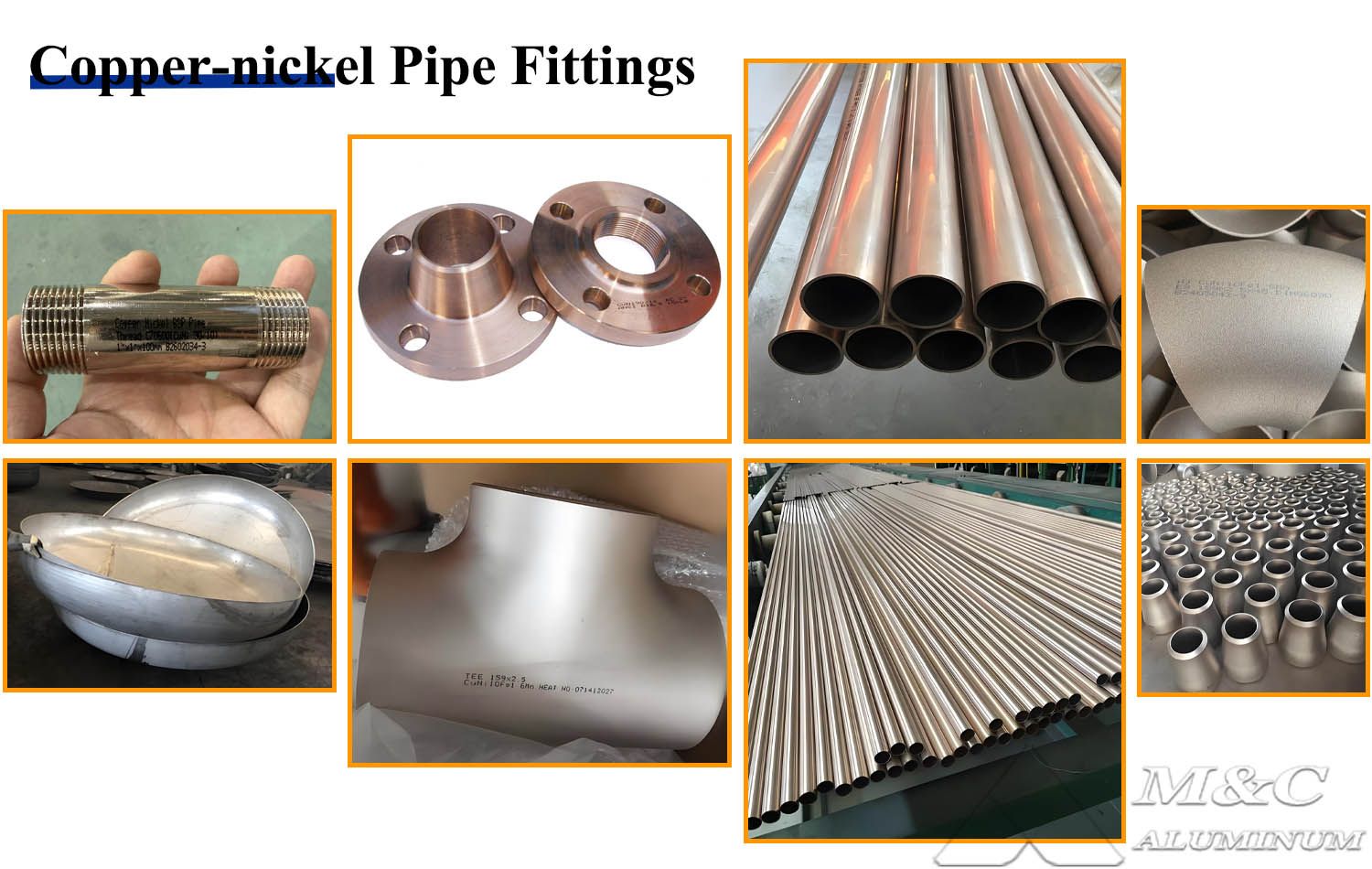

Common Types of C70600 Copper-Nickel Pipe Fittings

C70600 Copper-Nickel Alloy Pipes

Types: Seamless pipes, welded pipes, precision tubes, and more.

Applications: Used in ship piping systems, seawater condensers, heat exchangers, marine cooling systems, and other seawater handling equipment.

C70600 Copper-Nickel Alloy Flanges

Types: Slip-on flanges, weld neck flanges, socket weld flanges, blind flanges, threaded flanges, and customized flanges.

Applications: Used to connect copper-nickel pipes, valves, pumps, heat exchangers, and other equipment while ensuring sealing performance and corrosion resistance.

C70600 Copper-Nickel Alloy Elbows

Types: 90-degree elbows, 45-degree elbows, long-radius elbows, short-radius elbows, and customized bends.

Applications: Used to change the direction of pipelines and accommodate different installation layouts in shipbuilding, offshore engineering, and seawater cooling systems.

C70600 Copper-Nickel Alloy Tees

Types: Equal tees and reducing tees.

Applications: Used for pipeline branch connections, allowing seawater or cooling media to be diverted, combined, or distributed between different pipeline sections.

C70600 Pipe Caps

Types: Hemispherical caps, elliptical caps, flat caps, end caps, and customized closures.

Applications: Pipe caps are mainly used to close the ends of pipelines. They can also be used for maintenance access, pipeline reservations, temporary closures, and certain pressure piping structures.

C70600 Copper-Nickel Reducers

Types: Concentric reducers and eccentric reducers.

Applications: Reducers are used to connect pipes of different diameters. Their design should take into account changes in flow velocity and pressure loss. In high-velocity seawater systems, abrupt diameter changes should be avoided to minimize excessive local turbulence and erosion.

Other C70600 Pipe Fittings

Types: Forged fittings, threaded pipe couplings, socket weld fittings, unions, nipples, branch outlets, pipe spools, and other custom-made piping accessories.

Applications: These products can be customized according to specific piping layouts, pressure ratings, connection methods, and installation requirements.

Main Connection Methods for C70600 Pipe Fittings

Depending on the pressure rating, pipe size, project specification, and installation environment, C70600 copper-nickel pipe fittings are generally connected using the following methods:

1. Butt Welding Connection

Butt-weld fittings can be manufactured in accordance with standards such as DIN 86090, ASME B16.9, or MSS SP-43.

This connection method is suitable for medium- and high-pressure piping systems and larger pipe diameters. It provides high connection strength, good structural integrity, and reliable long-term sealing performance.

2. Socket Welding and Brazing

Socket weld and brazed fittings may be supplied in accordance with ASME B16.11 or relevant project specifications.

They are commonly used for small-diameter piping systems, typically below DN50, where compact installation, efficient assembly, and reliable sealing are required.

3. Flanged Connection

Flanged fittings can be manufactured according to DIN 86037, ASME B16.5, JIS, or other applicable standards.

Flange connections are convenient for future maintenance, cleaning, inspection, valve replacement, pump installation, and equipment disassembly.

Why Are C70600 Pipe Fittings Suitable for Marine Environments?

1. Excellent Seawater Corrosion Resistance

C70600 copper-nickel alloy provides good resistance to seawater corrosion, including general corrosion, pitting corrosion, and crevice corrosion under appropriate design and operating conditions. It performs reliably in static seawater, flowing seawater, and marine atmospheric environments.

This makes it highly suitable for long-term service in marine and offshore applications.

2. Good Resistance to Marine Biofouling

The gradual release of copper ions from the alloy surface can help inhibit the attachment and growth of marine organisms, such as algae, barnacles, and shellfish.

This characteristic can reduce fouling inside seawater cooling systems, helping lower cleaning frequency and maintenance costs.

3. Strong Resistance to Stress Corrosion Cracking

Compared with certain austenitic stainless steels, such as 304 and 316L, C70600 generally has excellent resistance to chloride-induced stress corrosion cracking in seawater environments.

This makes it a reliable option for marine piping systems exposed to chloride-rich media.

4. Excellent Weldability

C70600 copper-nickel pipe fittings can be joined using TIG welding, MIG welding, and suitable brazing processes. This makes on-site installation, fabrication, repair, and maintenance more convenient.

Appropriate welding consumables and qualified welding procedures should be selected to ensure corrosion resistance and mechanical integrity in the weld zone.

5. Non-Magnetic and Highly Thermally Conductive

C70600 is a non-magnetic material, making it suitable for applications involving naval vessels, marine instruments, deep-sea exploration equipment, and other sensitive environments.

Its good thermal conductivity also makes it an important material for marine heat exchangers, condensers, and seawater cooling pipelines.

6. Reduced Maintenance Requirements

C70600 copper-nickel alloy has good resistance to aging, salt spray, seawater corrosion, and flow-induced erosion. In many marine service environments, it does not require frequent anti-corrosion coating, rust removal, or repainting, helping reduce long-term operating and maintenance costs.

Typical Applications of C70600 Copper-Nickel Pipe Fittings

Shipbuilding

• Ballast water systems

• Seawater cooling systems

• Firefighting seawater systems

• Bilge water piping

• Engine cooling pipelines

• Marine condenser and heat exchanger connections

Offshore Oil and Gas Platforms, FPSO and OSV Projects

• Seawater injection systems

• Living quarter cooling water networks

• Heat exchanger piping

• Process cooling systems

• Utility seawater pipelines

• Firewater and emergency cooling systems

Seawater Desalination Plants

• High-salinity seawater transportation pipelines

• Multi-Stage Flash (MSF) desalination systems

• Reverse Osmosis (RO) pretreatment systems

• Cooling water circulation systems

• Heat exchanger and condenser piping connections

Coastal Power Plants and Industrial Cooling Systems

• Seawater intake and discharge systems

• Circulating cooling water pipelines

• Condenser water systems

• Seawater heat exchanger connections

• Coastal industrial cooling networks

C70600 copper-nickel pipe fittings provide a reliable, durable, and corrosion-resistant solution for critical seawater piping systems where long-term performance, safety, and reduced maintenance are essential.
