In marine engineering, shipbuilding, seawater desalination, offshore platforms, and heat exchange systems, piping materials are continuously exposed to challenges such as seawater corrosion, erosion corrosion, marine biofouling, pressure fluctuations, and complex media conditions. Compared with ordinary copper pipes, stainless steel pipes, and certain carbon steel pipes, UNS C70600 copper nickel pipe offers outstanding seawater corrosion resistance, good weldability, and long-term service stability. It has therefore become an important material for marine piping systems and heat exchange equipment.

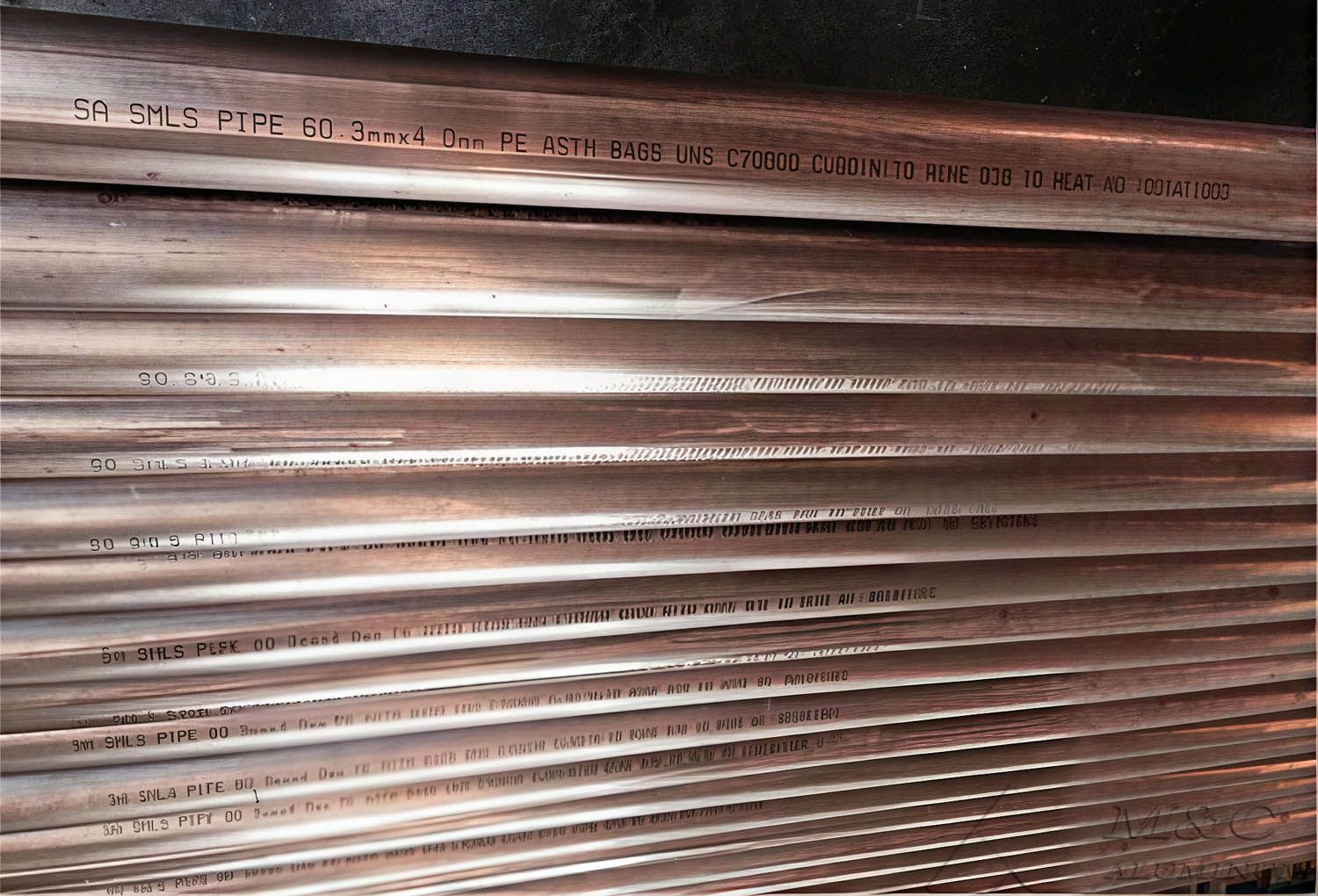

What Is UNS C70600 Copper Nickel Pipe?

UNS C70600-a copper-nickel alloy consisting of 90% copper and 10% nickel, with controlled additions of iron and manganese to enhance erosion-corrosion resistance-offers the best cost-performance ratio among copper-nickel alloys used in marine seawater systems; it is distinct from the higher-nickel C71500 (70/30) alloy.

• Chemical Composition: Cu (balance), Ni 9.0–11.0%, Fe 1.0–1.8%, Mn 0.5–1.0%. Impurities such as lead (Pb) and zinc (Zn) are strictly controlled to ensure stability under marine operating conditions.

• Standards: Compliant with ASTM B111 / ASME SB111, ASTM B466, and GB/T 8890. Classification society certification (e.g., LR, DNV, BV, CCS) is available, along with EN10204 3.1 material test certificates, meeting all requirements for export inspection.

C70600 copper nickel pipes can be supplied as either seamless pipes or welded pipes, depending on the manufacturing process, dimensions, and final application. Seamless pipes are suitable for systems requiring high structural integrity, dimensional consistency, and reliable performance under specific pressure conditions. Welded pipes can be used in other piping applications that comply with relevant design codes and project specifications.

For export shipments, copper nickel pipes are normally protected with plastic end caps, moisture-proof paper, and reinforced wooden pallets or wooden cases. This packaging helps prevent impact damage, moisture exposure, and surface oxidation during marine transportation. FOB, CIF, CFR, and other international trade terms are available. Major export ports in China include Qingdao, Shanghai, and Tianjin.

Key Physical and Mechanical Characteristics of UNS C70600 Copper Nickel Pipe

1. Natural Resistance to Seawater Corrosion

When exposed to seawater, C70600 forms a dense and stable protective oxide film on its surface. This film helps resist uniform corrosion and crevice corrosion, making the alloy suitable for continuous seawater immersion and seawater handling systems.

2. Resistance to Marine Biofouling

Copper nickel alloys can help inhibit the attachment of algae, shellfish, and microorganisms. This reduces the risk of marine biofouling, lowers pipeline cleaning and maintenance costs, and helps maintain stable flow capacity during long-term service.

3. Excellent Formability and Weldability

In annealed condition, C70600 copper nickel pipe offers good ductility. It can be bent, expanded, flared, TIG welded, and brazed. These properties make installation and fabrication more convenient in shipyards and offshore projects.

4. Good Thermal Conductivity

C70600 has good thermal conductivity and is suitable for marine condensers, seawater coolers, and heat exchanger tube bundles.

5. Wide Service Temperature Range

C70600 maintains good toughness even at low temperatures, including conditions as low as approximately -196°C. It can therefore be considered for low-temperature seawater piping systems associated with LNG support vessels and related marine applications, subject to project design requirements.

C70600 Copper Nickel Pipe Specifications

Main Applications of Marine Grade C70600 Copper Nickel Pipe

Marine grade C70600 seamless copper nickel pipe is widely used in seawater piping systems for ocean-going cargo ships, container vessels, oil tankers, bulk carriers, naval vessels, Ro-Ro passenger ships, and offshore platforms.

Typical applications include:

Seawater cooling pipelines, heat exchangers, and condenser tube bundles for marine main engines and auxiliary engines;

Ship ballast water systems and bilge water discharge pipelines;

Seawater fire main systems and spray pipelines;

Seawater desalination equipment and marine freshwater generator heat exchanger tubes;

Seawater transfer and auxiliary cooling systems for offshore platforms;

Seawater heat exchange pipelines for coastal power plants and offshore wind farm booster stations.

Over the lifecycle of a vessel or marine facility, C70600 copper nickel piping can help reduce the risk of pipe perforation and leakage, minimize dry-docking and maintenance downtime, and offer favorable long-term operating costs compared with carbon steel and ordinary stainless steel in suitable seawater applications.

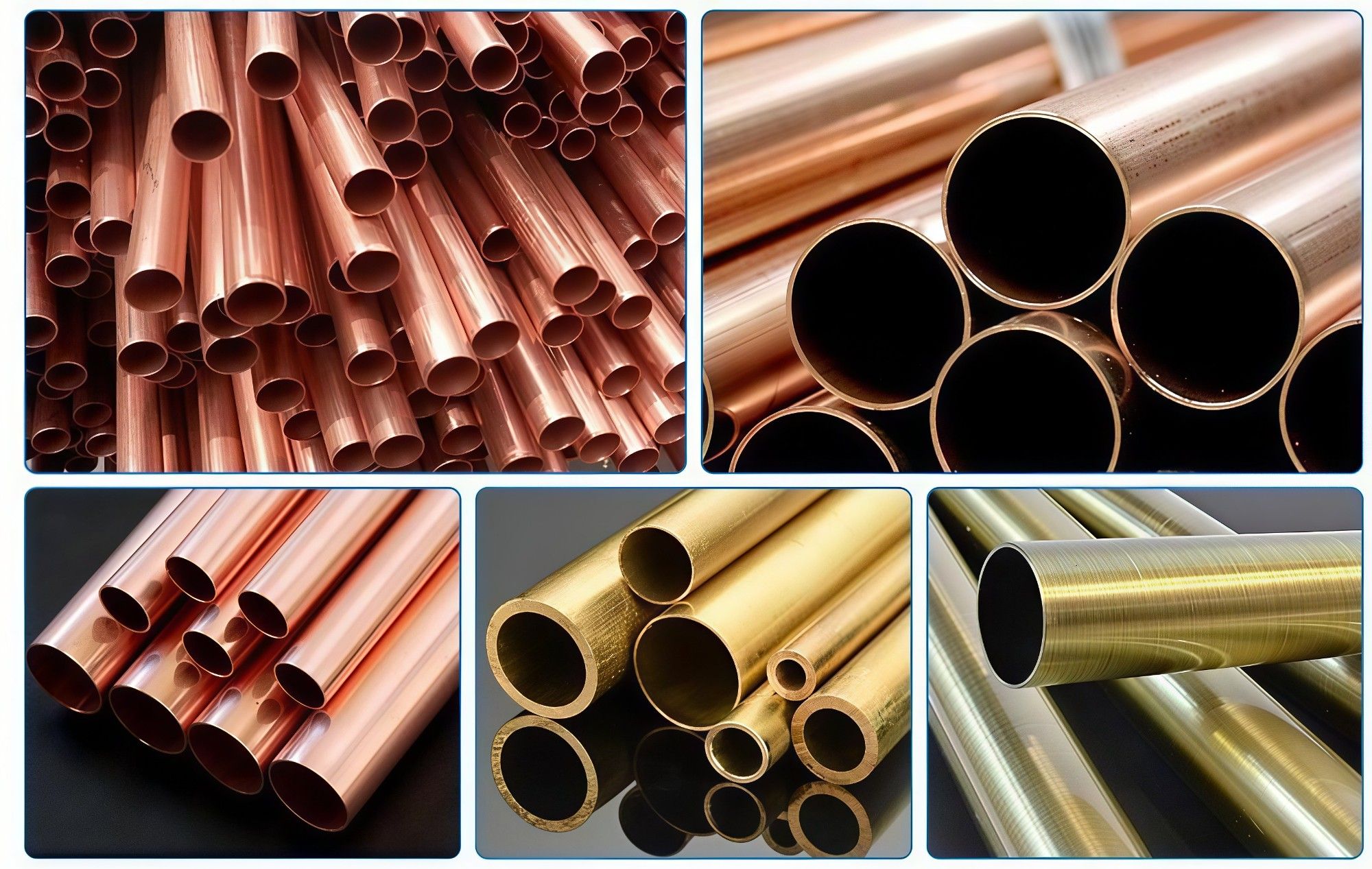

Main Export Product Forms of C70600 Copper Nickel Pipe

To meet the needs of different shipbuilding and offshore engineering projects, C70600 copper nickel alloy can be supplied in a variety of pipe and fitting forms.

1. Seamless Copper Nickel Pipe

Seamless pipe is commonly used in systems with relatively high pressure requirements, corrosive media, or strict reliability requirements.

Key features include:

Uniform pipe body without weld seams;

Stable pressure-bearing performance;

Good internal and external surface quality;

Suitable for shipbuilding, offshore engineering, heat exchange, and high-reliability piping systems.

2. Welded Copper Nickel Pipe

Welded copper nickel pipe is suitable for certain large-diameter, normal-pressure, or specially designed piping systems. Its main advantages include flexible sizing and controllable cost, making it suitable for bulk engineering procurement.

For welded pipes, the following items should be confirmed:

Weld seam quality;

Non-destructive testing requirements;

Post-weld heat treatment requirements;

Eddy current testing or hydrostatic testing;

Corrosion resistance of the weld zone.

3. Copper Nickel Tubes for Heat Exchangers

These are typically small-diameter, thin-wall, long-length seamless tubes widely used in:

Marine condensers;

Seawater coolers;

Evaporators;

Seawater desalination equipment;

Heat exchangers for petrochemical and power generation industries.

4. Large-Diameter Copper Nickel Pipes and Fittings

Large-diameter C70600 pipes can be used for:

Seawater intake pipes;

Seawater discharge pipes;

Ballast water systems;

Seawater fire-fighting networks;

Offshore platform cooling water systems;

Main and auxiliary engine cooling water pipelines.

Projects may also require matching fittings, including:

Elbows;

Tees;

Reducers;

Flanges;

Pipe caps;

Socket-weld fittings;

Customized prefabricated pipe spools.

What Is the Difference Between C70600 and C71500 Copper Nickel Pipe?

In addition to C70600, another widely used marine copper nickel grade is UNS C71500, commonly known as 70/30 copper nickel alloy.

The primary difference between these alloys is their nickel content.

For conventional marine seawater cooling systems, auxiliary piping, seawater heat exchangers, and general offshore engineering projects, C70600 often provides a favorable balance between performance and cost.

For high-velocity, high-temperature, highly contaminated seawater environments, or projects with particularly demanding service-life and corrosion-resistance requirements, C71500 may be the more suitable material.

Why Do Overseas Marine Projects Choose Our C70600 Copper Nickel Pipe?

1. Stable Performance in Seawater Service

Carbon steel can corrode rapidly in seawater, while 316L stainless steel may be susceptible to pitting corrosion in chloride-containing seawater environments. C70600 copper nickel alloy forms a self-protective surface film and provides excellent long-term seawater corrosion resistance. Its resistance to marine biofouling is also a distinctive advantage, helping reduce the risk of pipeline blockage.

2. Complete Export Documentation for Overseas Inspection and Approval

For bulk export orders, we can provide mill test certificates, third-party inspection reports, and classification society certificates where required. We support LC and T/T payment methods and are familiar with export customs clearance, commodity inspection, and documentation procedures for the shipbuilding industry, helping overseas buyers reduce documentation risks.

3. Factory Direct Wholesale and Project-Based Split Deliveries

We support long-term framework purchasing for shipyards and offshore engineering projects. Production and deliveries can be arranged in batches according to construction schedules. Flexible MOQ options are available, while large-volume orders offer competitive pricing by reducing intermediary costs.

4. Engineering and Technical Support

We can provide material selection guidance related to marine piping design, installation welding, and flow velocity considerations. For C70600, seawater flow velocity is generally recommended to be controlled within approximately 5 m/s to reduce erosion-corrosion risk. Technical consultation can help avoid material selection or application issues during on-site installation and operation.

FAQ

Q1: Are UNS C70600 and CuNi 90/10 the same material?

Yes. C70600 generally refers to 90/10 copper nickel alloy, containing approximately 9%–11% nickel as well as controlled amounts of iron and manganese. The actual composition should be confirmed according to the applicable material standard and mill test certificate for each order.

Q2: Is C70600 copper nickel pipe suitable for seawater cooling systems?

Yes, it is suitable for many properly designed seawater cooling systems. Its corrosion resistance and erosion-corrosion resistance make it a common choice for marine piping. However, factors such as flow velocity, seawater quality, operating temperature, sediment content, and the combination of materials used in the system should also be evaluated.

Q3: Can C70600 copper nickel pipe be purchased according to ASTM standards?

Yes. Common reference standards include ASTM B466 and ASTM B467 for relevant seamless and welded pipe products. Heat exchanger and condenser tubes may also be supplied in accordance with ASTM B111. The applicable standard should be selected based on the product form and final application.

Q4: Can C70600 copper nickel pipe be supplied with classification society certification?

This depends on the manufacturer's qualifications, product approval scope, project requirements, and inspection arrangements. Buyers should confirm the required classification society, certificate type, and applicable product scope before placing an order.

Q5: What information is needed to obtain an accurate quotation for wholesale orders?

To receive an accurate quotation, please provide the material grade, product standard, seamless or welded type, outside diameter, wall thickness, length, order quantity, destination port, inspection requirements, and requested delivery date. The more complete the information, the more accurately material and logistics costs can be calculated.
