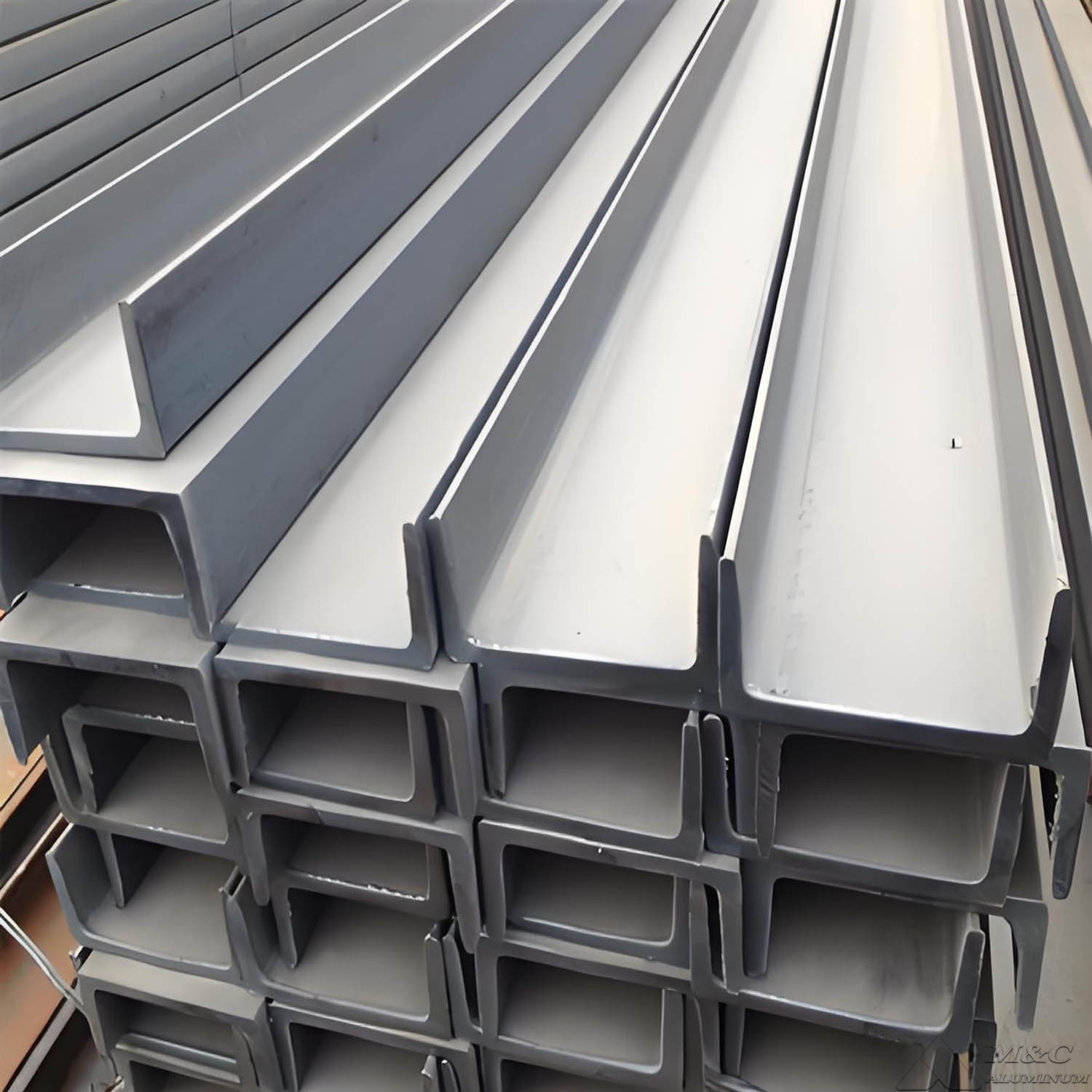

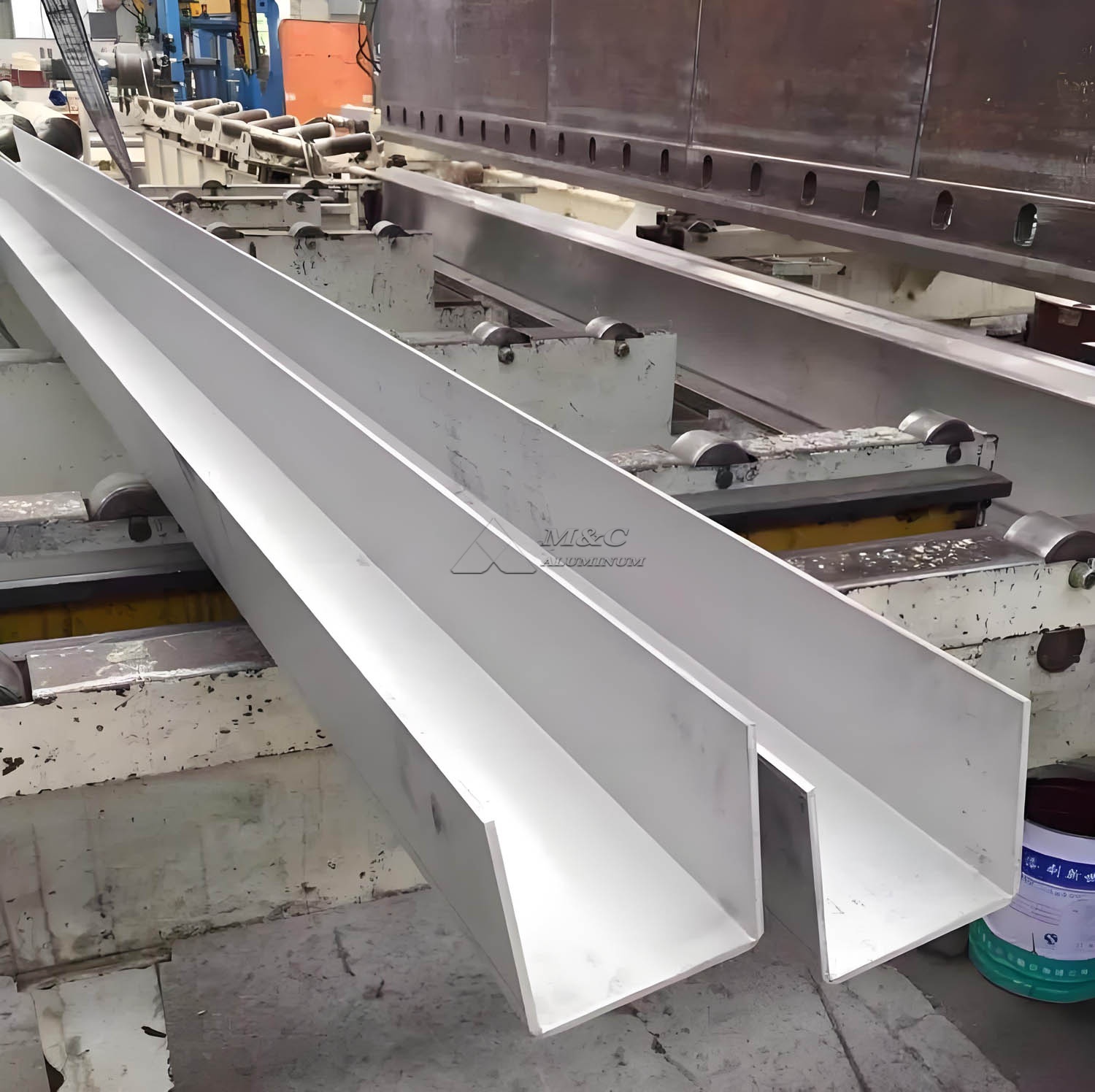

As a manufacturer of marine aluminum extrusions, we produce 6082 T6 marine-grade aluminum alloy U-channel for structural applications where strength, dimensional consistency, and corrosion-aware design are required. These channels are used in hull framing systems, deck supports, bulkhead reinforcements, equipment foundations, superstructure members, and internal vessel structures.

A 6082 T6 marine aluminum U-channel combines the medium-to-high strength characteristics of the 6xxx aluminum alloy family with the manufacturing efficiency of extrusion. The U-shaped cross-section provides useful stiffness while allowing designers to create practical connections, enclosed edge details, stiffening members, and support rails with reduced fabrication complexity.

Why 6082 T6 Is Used for Marine Structural Channels

6082 is an Al-Mg-Si alloy strengthened by heat treatment. In the T6 temper, the material is solution heat treated and artificially aged to obtain elevated mechanical strength. Compared with more general-purpose 6xxx alloys, 6082 provides higher strength potential and is widely selected for load-bearing extruded components.

For hull structures, the value of a 6082 T6 aluminum profile is not limited to tensile strength. Its performance also depends on extrusion quality, section design, welding procedure, isolation from dissimilar metals, drainage, coating system, and the intended marine exposure conditions. We manufacture each marine aluminum U-channel with controlled alloy chemistry and process parameters to support stable downstream fabrication.

Typical applications include:

• Hull longitudinal stiffeners and local reinforcement members.

• Deck edge supports and deck framing details.

• Bulkhead, partition, and cabin structural channels.

• Engine room support structures and equipment mounting rails.

• Hatch surrounds, access openings, and protective edge sections.

• Offshore access platforms, workboat structures, and marine utility vessels.

For highly exposed seawater immersion zones, alloy selection should be evaluated alongside alternatives such as 5xxx series plate or marine extrusions. Our engineering team can review the section location, joining method, loading direction, and corrosion protection requirements before production.

6082 T6 Aluminum Alloy Chemical Composition

We control incoming materials, melting practices, billet quality, extrusion conditions, and heat treatment to maintain composition within applicable alloy requirements. The following table shows the standard nominal composition range generally associated with 6082 aluminum alloy.

The magnesium and silicon balance enables precipitation hardening during the T6 treatment process. Manganese contributes to microstructural control and strength. We provide mill test documentation for ordered material where specified in the purchase agreement.

Typical Technical Parameters of 6082 T6 U-Channel

Mechanical values for 6082 T6 aluminum U-channel vary with wall thickness, profile geometry, temper verification method, and applicable standard. The values below are typical reference data for engineering comparison. Final design values should be based on the approved material certificate and project standard.

U-Channel Dimensions and Custom Extrusion Capability

Our factory manufactures standard and custom 6082 T6 marine aluminum U-channel sections. A typical U-channel includes a base width, two side legs, wall thickness, inside corner radius, and overall height. These dimensions can be adjusted to match hull geometry, installation constraints, welding access, drainage needs, and load paths.

For profiles with complex geometry or demanding tolerance requirements, we review the extrusion drawing before die manufacture. This process helps identify wall-thickness transitions, sharp corners, asymmetric sections, and hollow features that may affect extrusion stability. Our Aluminum Profile manufacturing process includes die design review, billet preparation, extrusion, online straightening, T6 heat treatment, cutting, inspection, and protective packing.

Manufacturing Process and Quality Control

Producing a reliable marine structural aluminum channel requires more than selecting the correct alloy designation. We operate the manufacturing process with controls at each stage to support consistent dimensions, mechanical performance, and surface quality.

First, qualified aluminum billets are selected according to the required 6082 chemistry. During extrusion, we control billet temperature, container temperature, ram speed, die condition, and exit temperature. These factors affect profile straightness, grain structure, surface condition, and dimensional repeatability.

After extrusion, channels are cooled under controlled conditions, stretched where required, cut to length, and processed through solution heat treatment and artificial aging for the T6 temper. We then inspect key characteristics according to the order specification.

Our routine quality control can include:

• Chemical composition verification by spectrometric analysis.

• Tensile testing for applicable production lots.

• Cross-section measurement of width, height, thickness, and radii.

• Straightness, twist, bow, and cut-length inspection.

• Surface examination for die lines, scratches, inclusions, and handling marks.

• Visual packing inspection before shipment.

• Material certificates and inspection reports when required.

For marine projects, traceability is particularly important. We can identify batches by production lot and coordinate documentation requirements in advance, including customer-specific inspection formats where practical.

Welding and Fabrication Considerations for Hull Structures

6082 T6 aluminum U-channel can be fabricated using conventional cutting, drilling, bending within suitable limits, and welding procedures. However, designers and fabricators should recognize that welding locally reduces the strength of T6 material in the heat-affected zone. Structural calculations should account for the post-weld condition rather than relying solely on parent-material T6 values.

MIG and TIG welding are commonly used for marine aluminum structures. Filler alloy selection depends on base material, joint design, service environment, and procedure qualification. Our Aluminum welding wire range can support compatible marine fabrication programs where an appropriate filler is selected by the welding engineer.

Good fabrication practice for aluminum hull channels includes removing oxide and contamination before welding, using dedicated stainless steel brushes, controlling heat input, supporting the channel to reduce distortion, and ensuring adequate drainage in assembled structures. Where U-channels create cavities, avoid designs that trap saltwater, moisture, or contaminants.

When joining aluminum to stainless steel, carbon steel, or other dissimilar metals, electrical isolation is required to reduce galvanic corrosion risk. Insulating pads, compatible sealants, coated fasteners, and controlled drainage should be considered as part of the complete marine assembly design.

Surface Protection and Corrosion Management

The corrosion performance of a marine-grade aluminum alloy U-channel depends on the actual service environment. Splash zones, continuously wet areas, crevices, bilge spaces, and contact points with other metals require particular attention. 6082 can perform effectively in marine structures when material selection and protective design are coordinated.

Mill finish is suitable for many internal or protected structural applications. For visible or more exposed components, anodizing, marine-grade powder coating, or paint systems may be specified. Surface treatment should be selected after considering weld areas, expected abrasion, UV exposure, coating repair requirements, and compatibility with adjacent materials.

We recommend that customers provide the intended installation position and environmental category when requesting a quotation. This allows us to recommend an appropriate finish, packing method, and handling arrangement for the aluminum U-channel for hull structures.

Ordering Information for 6082 T6 Marine Aluminum U-Channel

To manufacture the correct profile efficiently, please provide a section drawing or the following basic information:

• Alloy and temper, such as 6082 T6.

• U-channel base width, leg height, wall thickness, and inside radius.

• Required length, cut tolerance, and quantity.

• Surface finish and corrosion protection requirements.

• Mechanical property, inspection, and certification requirements.

• Intended application, including welding and marine exposure conditions.

• Packing requirements for container, breakbulk, or project delivery.

As a factory, we support production from drawing review through extrusion, heat treatment, inspection, cutting, and export packing. Our 6082 T6 marine-grade aluminum alloy U-channel is manufactured for customers who require a controlled, application-oriented structural extrusion solution for hull and vessel construction.
