In shipbuilding, offshore engineering, and coastal construction, corrosion resistance is a key factor affecting material service life. The 5456 aluminum plate, a high-quality 5000-series marine aluminum alloy, exhibits outstanding corrosion resistance in seawater and high-humidity environments, making it an essential material for ships, offshore platforms, and seawater pipelines.

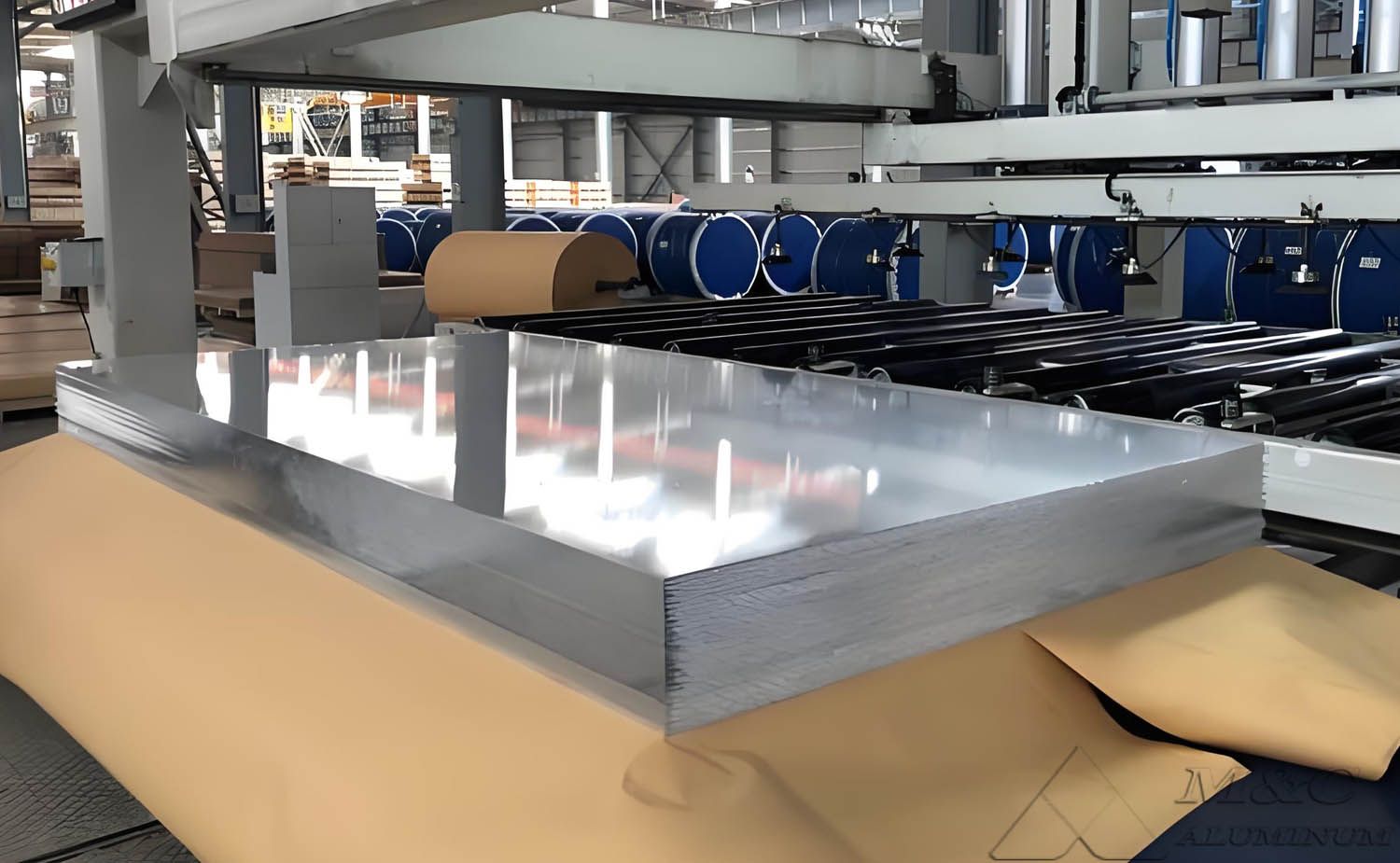

Product Overview
The 5456 aluminum plate belongs to the Al-Mg alloy series, primarily composed of aluminum and magnesium, with magnesium content typically ranging from 4.5% to 5.5%. Its common tempers include H116, H117, and H343, which are carefully processed through controlled cold working and stabilization treatments. These treatments maintain excellent mechanical properties while providing superior corrosion resistance.
In shipbuilding, 5456 aluminum plates are widely used for hulls, superstructures, fuel tanks, and ballast tanks. Compared with traditional steel, aluminum alloy hulls reduce weight by 40–50%, enhancing speed, reducing fuel consumption, and increasing cargo capacity. Additionally, 5456 marine aluminum plates are used in offshore platforms, seawater pipelines, and heat exchangers.
Features of 5456 Aluminum Plate
1. Excellent Corrosion Resistance: Magnesium enhances aluminum's corrosion resistance, particularly in seawater and salt spray environments.
2. Good Mechanical Properties: Cold working (e.g., rolling, stamping) can increase strength; typical tensile strength reaches 310–340 MPa.
3. Lightweight Advantage: Low density, high strength; ideal for marine and offshore engineering applications.
4. Good Weldability and Formability: Suitable for TIG/MIG welding and mechanical processing, allowing fabrication of complex structures.
Product Specifications
| Parameter | Specification |
| Alloy | 5456 |
| Temper | H116, H117, H32, etc. |
| Thickness | 3–50 mm |
| Width | 1000–2650 mm |
| Length | 1000–16000 mm |
| Surface | Anodized, embossed, painted, laminated, etc. |
| Certificates | ABS, LR, CCS, BV, etc. |
| MOQ | 1–3 tons |
Chemical Composition (%)
| Alloy | Mg | Mn | Cr | Fe | Si | Zn | Cu | Ti | Other | Al |
| 5456 | 4.7-5.5 | 0.50-1.00 | 0.05-0.20 | ≤0.40 | ≤0.25 | ≤0.25 | ≤0.10 | ≤0.20 | ≤0.15 | remainder |
Corrosion Performance of 5456 Aluminum Plate in Seawater
1. Outstanding Pitting Resistance
Chloride ions in seawater are the main cause of pitting corrosion. Through specific processing, 5456 aluminum plates have uniform surface potentials that inhibit localized electrochemical reactions, significantly reducing pitting occurrence.
2. Excellent Resistance to Intergranular and Exfoliation Corrosion
High-magnesium aluminum alloys often worry engineers due to intergranular corrosion. However, 5456 aluminum plates in H116 or H117 temper optimize the distribution of second-phase particles (Mg2Al3) at grain boundaries.
H116/H117 Tempers: These specialized tempers ensure highly stable internal microstructures, allowing the material to maintain excellent exfoliation corrosion resistance even during long-term exposure to warm seawater.
3. Stress Corrosion Cracking (SCC) Resistance
Under combined wave loads and mechanical stresses, ordinary materials may crack. 5456 aluminum plates combine high strength with good fracture toughness, providing reliable performance in dynamic marine environments.
Applications of 5456 Aluminum Plate in Seawater Environments
Shipbuilding: Lightweight cargo ships, passenger cabin walls, hull panels
Offshore Platforms and Wind Turbines: Structural supports, platform panels, engine housings
Seawater Pipelines and Heat Exchangers: Heat exchanger tube sheets for desalination plants
Coastal Construction and Dock Facilities: Anti-corrosion facades, handrails, railings
5456 vs. 5083 Marine aluminum: Which is Better?
| Performance | 5456 Aluminum Plate | 5083 Aluminum Plate |
| Tensile Strength | Slightly higher (≈315–345 MPa) | Medium (≈270–310 MPa) |
| Corrosion Resistance | More stable under high-strength requirements | Excellent, widely used |
| Weldability | Excellent | Excellent |
| Sensitivity to High-Temperature Aging | More sensitive (>65°C) | Relatively stable |
| Typical Applications | High-speed vessels, high-pressure containers | Hull plates, fuel tanks |
